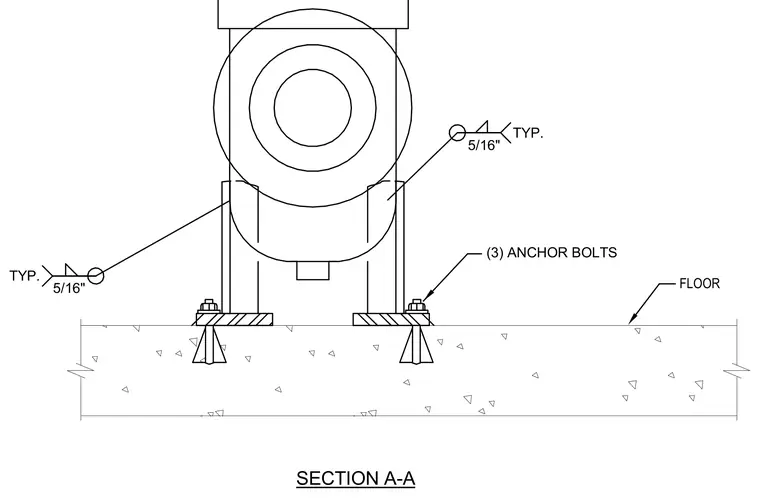

A mechanical equipment assembly is secured to a concrete floor slab using base plates anchored by three anchor bolts per side. The support structure is joined with five-sixteenth-inch typical fillet welds. The entire assembly bears directly on the concrete floor slab.
FLOOR SECTION A-A TYP. 5/16" (3) ANCHOR BOLTS TYP. 5/16"
