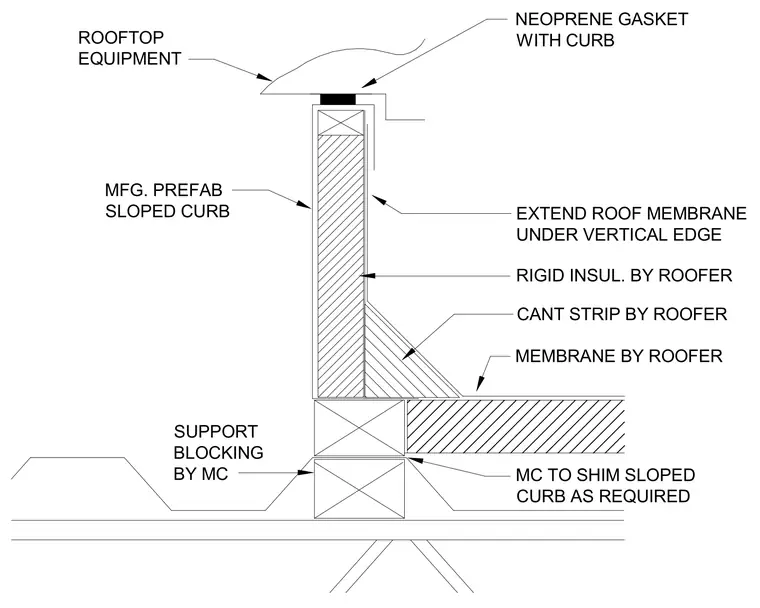

Rooftop equipment is supported on a manufacturer prefabricated sloped curb resting on wood support blocking. Support blocking is installed with wood members used to shim the sloped curb as required. The roof membrane extends under the vertical edge of the curb with rigid insulation and a cant strip installed by the roofer. A neoprene gasket is positioned between the rooftop equipment and the top of the curb.
SUPPORT BLOCKING BY MC MC TO SHIM SLOPED CURB AS REQUIRED EXTEND ROOF MEMBRANE UNDER VERTICAL EDGE RIGID INSUL. BY ROOFER CANT STRIP BY ROOFER MEMBRANE BY ROOFER ROOFTOP EQUIPMENT NEOPRENE GASKET WITH CURB MFG. PREFAB SLOPED CURB
