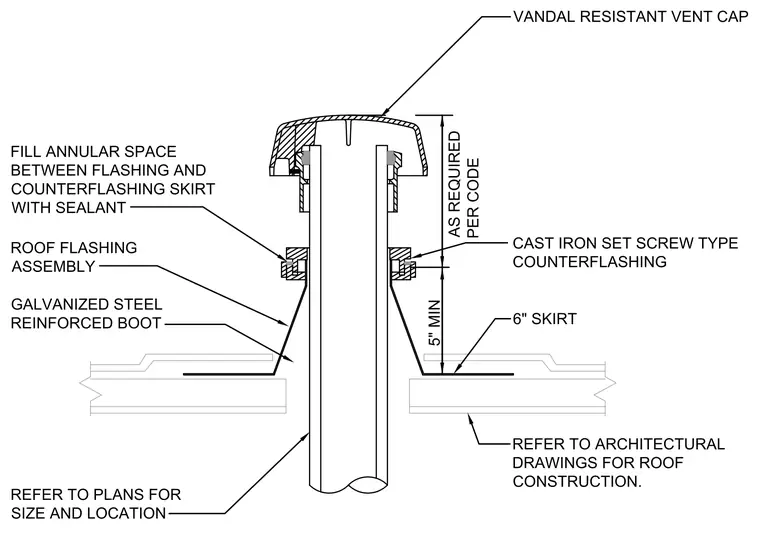

The assembly features a vandal-resistant vent cap fitted over a pipe penetration sized and located per architectural plans. A galvanized steel reinforced boot forms the roof flashing assembly with a six-inch skirt resting on the roof construction. A cast iron set screw type counterflashing is secured around the pipe, and the annular space between the flashing and counterflashing skirt is filled with sealant. The counterflashing maintains a five-inch minimum height above the roof surface, with total height configured as required per code.
REFER TO ARCHITECTURAL DRAWINGS FOR ROOF CONSTRUCTION. REFER TO PLANS FOR SIZE AND LOCATION ROOF FLASHING ASSEMBLY 5" MIN 6" SKIRT FILL ANNULAR SPACE BETWEEN FLASHING AND COUNTERFLASHING SKIRT WITH SEALANT CAST IRON SET SCREW TYPE COUNTERFLASHING GALVANIZED STEEL REINFORCED BOOT AS REQUIRED PER CODE VANDAL RESISTANT VENT CAP
