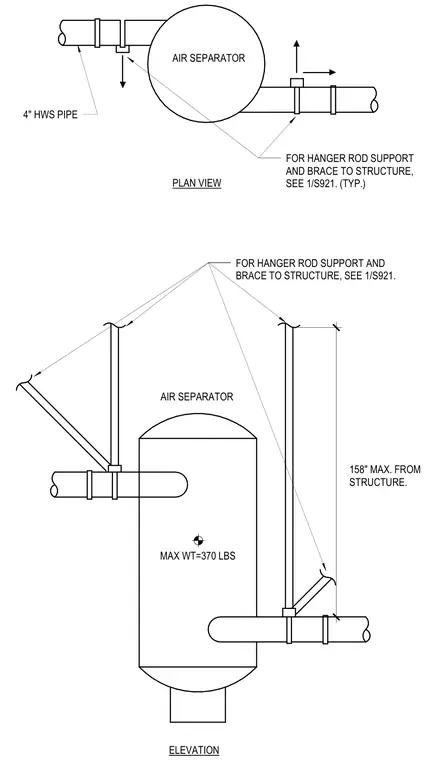

An air separator with a maximum weight of 370 pounds is suspended from the overhead structure using hanger rods and diagonal seismic braces. The unit connects to a 4-inch hot water supply pipe, with hanger rod supports and lateral bracing detailed per structural drawings at a maximum distance of 158 inches from the structure. The assembly includes both plan and elevation views indicating the attachment locations for the suspension rods and bracing.
AIR SEPARATOR FOR HANGER ROD SUPPORT AND BRACE TO STRUCTURE, SEE 1/S921. MAX WT=370 LBS 0'-4 21/32" 158" MAX. FROM STRUCTURE. AIR SEPARATOR FOR HANGER ROD SUPPORT AND BRACE TO STRUCTURE, SEE 1/S921. (TYP.) 4" HWS PIPE PLAN VIEW ELEVATION
