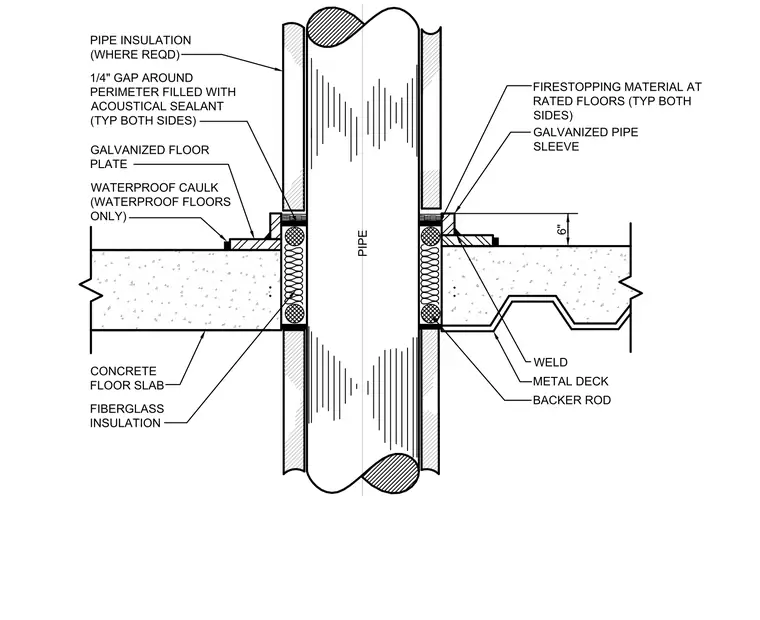

A vertical pipe passes through a concrete floor slab supported by a metal deck. A galvanized pipe sleeve surrounds the pipe within the core opening, with firestopping material installed at rated floors on both sides. A one-quarter-inch gap around the perimeter is packed with a backer rod and filled with acoustical sealant typically on both sides. Fiberglass insulation fills the remaining annular space, and a galvanized floor plate covers the penetration with waterproof caulk applied for waterproof floors only.
CONCRETE FLOOR SLAB WATERPROOF CAULK (WATERPROOF FLOORS ONLY) PIPE INSULATION (WHERE REQD) PIPE FIRESTOPPING MATERIAL AT RATED FLOORS (TYP BOTH SIDES) GALVANIZED PIPE SLEEVE METAL DECK 6" BACKER ROD FIBERGLASS INSULATION 1/4" GAP AROUND PERIMETER FILLED WITH ACOUSTICAL SEALANT (TYP BOTH SIDES) GALVANIZED FLOOR PLATE WELD
