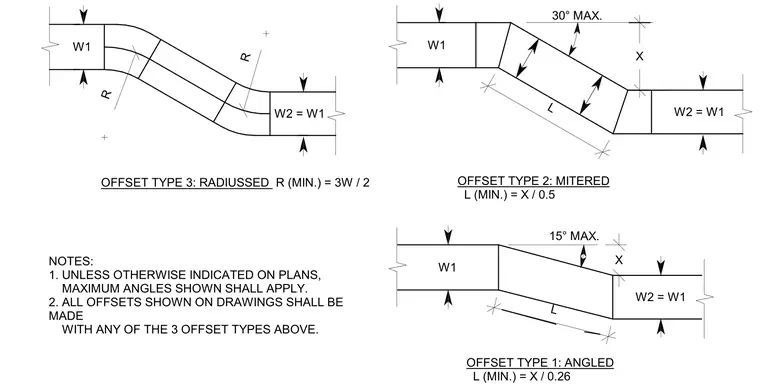

Duct offset configurations define acceptable geometry for transitions between unequal or offset duct sizes. Offset type 1 specifies an angled transition with a maximum angle of fifteen degrees and a minimum length of X divided by 0.26. Offset type 2 specifies a mitered transition with a maximum angle of thirty degrees and a minimum length of X divided by 0.5. Offset type 3 specifies a radiussed transition with a minimum radius equal to three times W divided by two. Unless otherwise indicated on plans, maximum angles shown shall apply to all offsets made with any of the three types.
W2 = W1 W1 OFFSET TYPE 1: ANGLED L (MIN.) = X / 0.26 W1 W2 = W1 OFFSET TYPE 2: MITERED L (MIN.) = X / 0.5 W1 W2 = W1 NOTES: 1. UNLESS OTHERWISE INDICATED ON PLANS, MAXIMUM ANGLES SHOWN SHALL APPLY. 2. ALL OFFSETS SHOWN ON DRAWINGS SHALL BE MADE WITH ANY OF THE 3 OFFSET TYPES ABOVE. L 15° MAX. X L 30° MAX. X R R OFFSET TYPE 3: RADIUSSED R (MIN.) = 3W / 2
