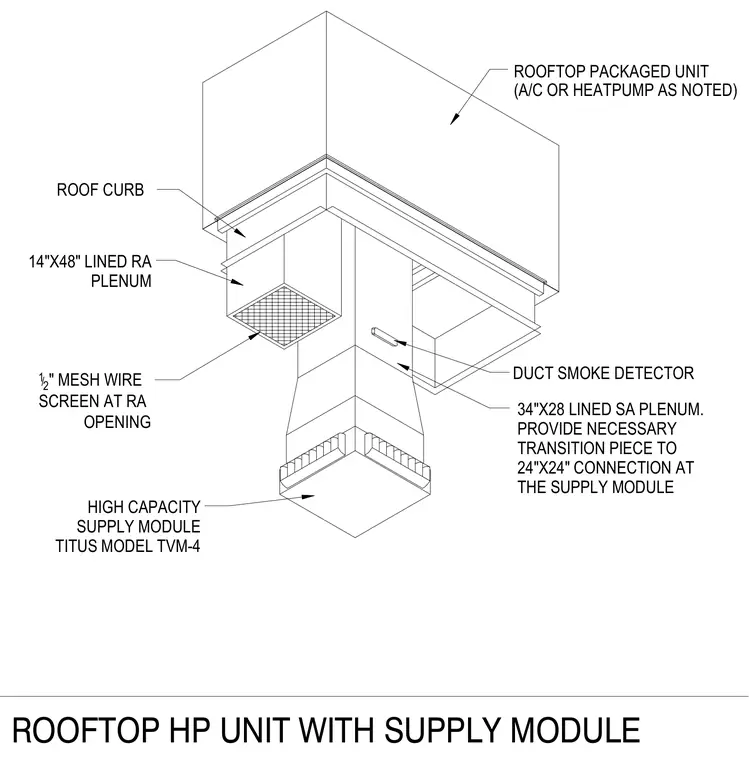

A rooftop packaged unit, functioning as an air conditioner or heat pump as noted, is supported on a standard roof curb. The assembly incorporates a fourteen-by-forty-eight-inch lined return air plenum fitted with a one-half-inch mesh wire screen at the opening. A thirty-four-by-twenty-eight-inch lined supply air plenum connects to a duct smoke detector and transitions to a twenty-four-by-twenty-four-inch connection at the supply module. A high-capacity supply module, model Titus Model TVM-4, completes the air distribution drop.
ROOFTOP HP UNIT WITH SUPPLY MODULE ROOFTOP PACKAGED UNIT (A/C OR HEATPUMP AS NOTED) ROOF CURB DUCT SMOKE DETECTOR 14"X48" LINED RA PLENUM HIGH CAPACITY SUPPLY MODULE TITUS MODEL TVM-4 34"X28 LINED SA PLENUM. PROVIDE NECESSARY TRANSITION PIECE TO 24"X24" CONNECTION AT THE SUPPLY MODULE 1/2 " MESH WIRE SCREEN AT RA OPENING
