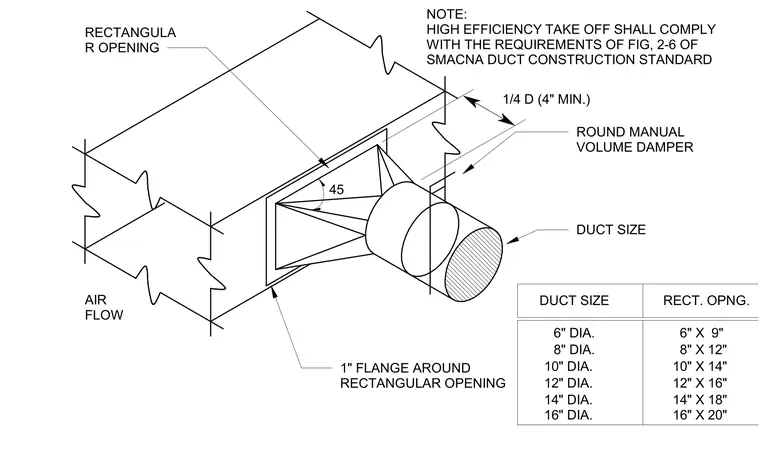

A high-efficiency duct take-off assembly connects a round branch duct to a main rectangular duct. The connection features a one-inch flange around the rectangular opening and includes a round manual volume damper positioned within the branch run. A forty-five-degree transition angle is maintained from the rectangular duct face to the round duct size, with a minimum clearance of four inches or one-quarter of the duct diameter. The installation complies with the requirements of Figure 2-6 of the SMACNA HVAC Duct Construction Standards, supported by a sizing schedule correlating round duct diameters from six inches to sixteen inches with corresponding rectangular openings ranging from six by nine inches to sixteen by twenty inches.
45 1/4 D (4" MIN.) DUCT SIZE 6" DIA. 8" DIA. 10" DIA. 12" DIA. 14" DIA. RECT. OPNG. 6" X 9" 8" X 12" 10" X 14" 12" X 16" 14" X 18" RECTANGULA R OPENING AIR FLOW 1" FLANGE AROUND RECTANGULAR OPENING DUCT SIZE ROUND MANUAL VOLUME DAMPER 16" DIA. 16" X 20" NOTE: HIGH EFFICIENCY TAKE OFF SHALL COMPLY WITH THE REQUIREMENTS OF FIG, 2-6 OF SMACNA DUCT CONSTRUCTION STANDARD
