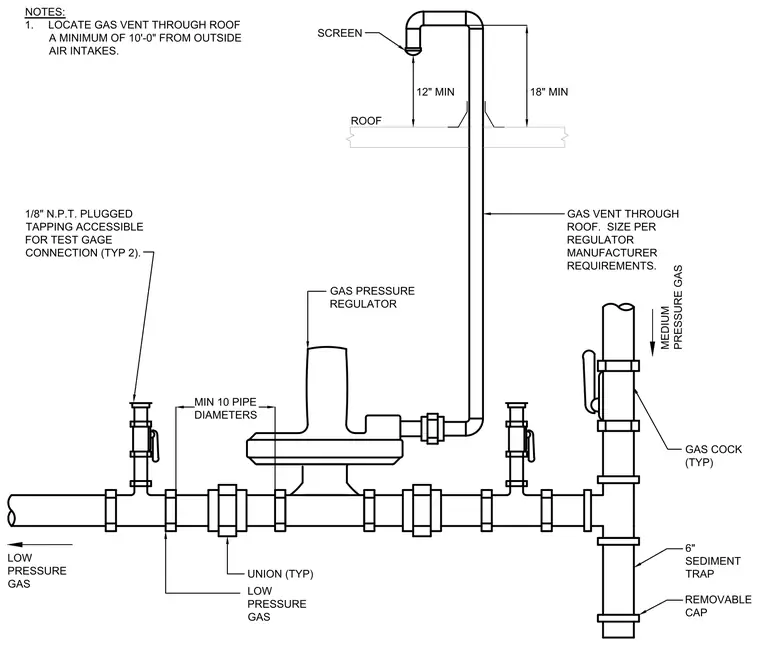

The medium pressure gas line steps down through a gas pressure regulator into a low pressure gas distribution network. The assembly incorporates a six inch sediment trap with a removable cap, multiple unions for maintenance access, and typical gas cocks for isolation. Two one-eighth inch National Pipe Thread plugged tappings are provided for test gage connections, spaced a minimum of ten pipe diameters apart. A gas vent extends through the roof, sized per the regulator manufacturer requirements, terminating with a screen at least twelve inches above the roof surface and eighteen inches above the flashing. The vent must be located a minimum of ten feet away from outside air intakes.
LOW PRESSURE GAS 12" MIN 18" MIN ROOF GAS VENT THROUGH ROOF. SIZE PER REGULATOR MANUFACTURER REQUIREMENTS. SCREEN GAS PRESSURE REGULATOR 1/8" N.P.T. PLUGGED TAPPING ACCESSIBLE FOR TEST GAGE CONNECTION (TYP 2). UNION (TYP) NOTES: 1. LOCATE GAS VENT THROUGH ROOF A MINIMUM OF 10'-0" FROM OUTSIDE AIR INTAKES. LOW PRESSURE GAS MEDIUM PRESSURE GAS GAS COCK (TYP) 6" SEDIMENT TRAP REMOVABLE CAP MIN 10 PIPE DIAMETERS
