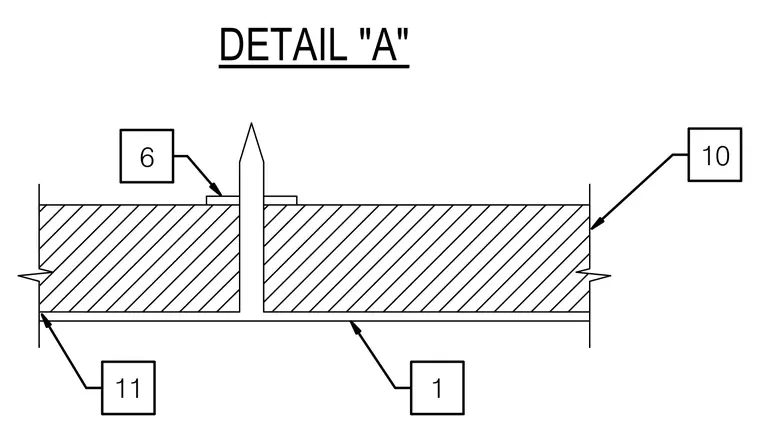

A threaded fastener penetrates a substrate and is secured by a flat washer bearing on the top surface. The assembly features numbered reference callouts indicating individual components including the primary fastener, washer, base layer, and backing material.
