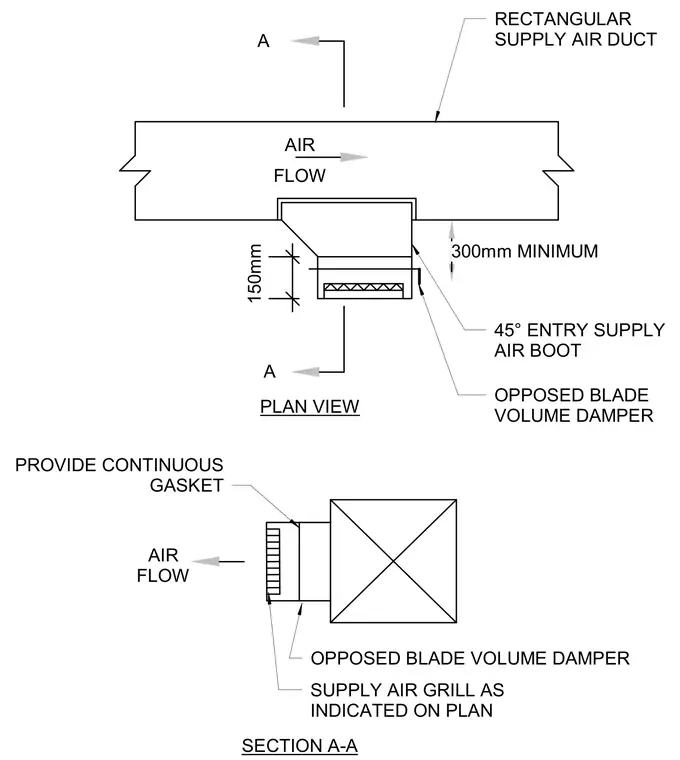

A rectangular supply air duct connects to a forty-five degree entry supply air boot with a minimum three hundred millimeter clearance. An opposed blade volume damper regulates airflow into the supply air grill. A continuous gasket seals the grill connection to the boot.
AIR FLOW RECTANGULAR SUPPLY AIR DUCT 150mm A A SECTION A-A PLAN VIEW PROVIDE CONTINUOUS GASKET SUPPLY AIR GRILL AS INDICATED ON PLAN OPPOSED BLADE VOLUME DAMPER 45° ENTRY SUPPLY AIR BOOT AIR FLOW 300mm MINIMUM OPPOSED BLADE VOLUME DAMPER
