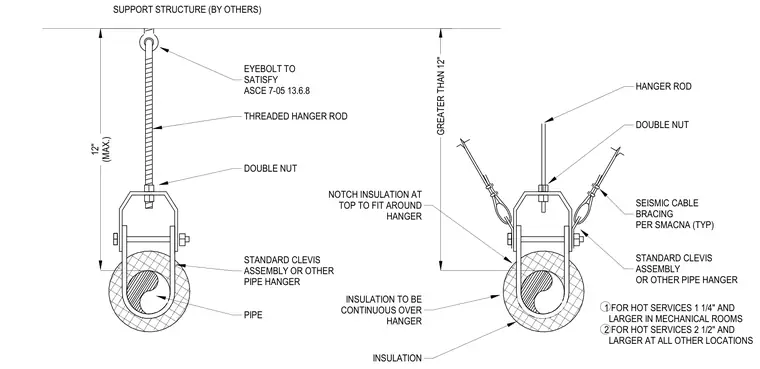

An insulated pipe is suspended from a support structure by a threaded hanger rod secured with double nuts and a standard clevis assembly or other approved pipe hanger. The insulation is continuous over the hanger with a notch at the top to fit around the hanger. Seismic cable bracing per SMACNA is provided with an eyebolt satisfying ASCE 7-05 13.6.8 for hot services one and one-quarter inches and larger in mechanical rooms and two and one-half inches and larger at all other locations. The maximum distance from the support structure to the hanger attachment is twelve inches for greater than twelve-inch conditions.
GREATER THAN 12" 1 FOR HOT SERVICES 1 1/4" AND LARGER IN MECHANICAL ROOMS 2 FOR HOT SERVICES 2 1/2" AND LARGER AT ALL OTHER LOCATIONS 12" (MAX.) SUPPORT STRUCTURE (BY OTHERS) HANGER ROD DOUBLE NUT SEISMIC CABLE BRACING PER SMACNA (TYP) STANDARD CLEVIS ASSEMBLY OR OTHER PIPE HANGER INSULATION INSULATION TO BE CONTINUOUS OVER HANGER NOTCH INSULATION AT TOP TO FIT AROUND HANGER EYEBOLT TO SATISFY ASCE 7-05 13.6.8 THREADED HANGER ROD DOUBLE NUT STANDARD CLEVIS ASSEMBLY OR OTHER PIPE HANGER PIPE
