Cable bracing assemblies attach to building structures via several standard methods depending on the substrate. A concrete expansion anchor secures a stake eye and cable assembly or URC clip with a cable loop to a concrete deck. Alternatively, an ASTM A-307 bolt or weld stud attaches the cable assembly directly to the bottom flange of a steel beam or joist. When drilling or welding is prohibited, a double-sided beam clamp grips the steel beam or joist flange to anchor the cable assembly. For bar joists, a looped cable connection wraps around the top chord at a panel point with a maximum forty-five-degree angle.

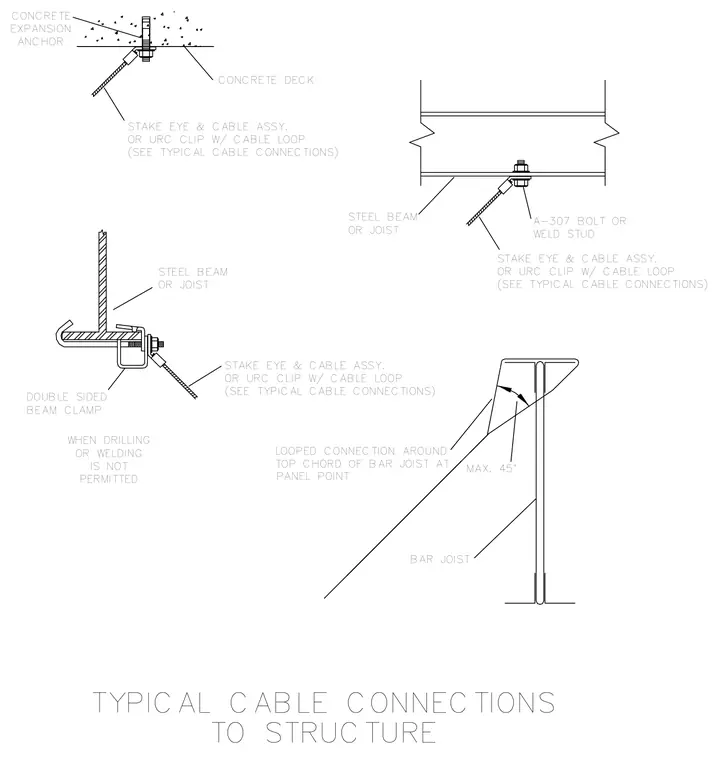

MAX. 45° TYPICAL CABLE CONNECTIONS BEAM CLAMP DOUBLE SIDED WHEN DRILLING OR WELDING PERMITTED TO STRUCTURE (SEE TYPICAL CABLE CONNECTIONS) OR URC CLIP W/ CABLE LOOP STAKE EYE & CABLE ASSY. PANEL POINT LOOPED CONNECTION AROUND TOP CHORD OF BAR JOIST AT IS NOT BAR JOIST EXPANSION ANCHOR CONCRETE (SEE TYPICAL CABLE CONNECTIONS) OR URC CLIP W/ CABLE LOOP STAKE EYE & CABLE ASSY. CONCRETE DECK STEEL BEAM OR JOIST STEEL BEAM OR JOIST (SEE TYPICAL CABLE CONNECTIONS) OR URC CLIP W/ CABLE LOOP STAKE EYE & CABLE ASSY. A-307 BOLT OR WELD STUD
