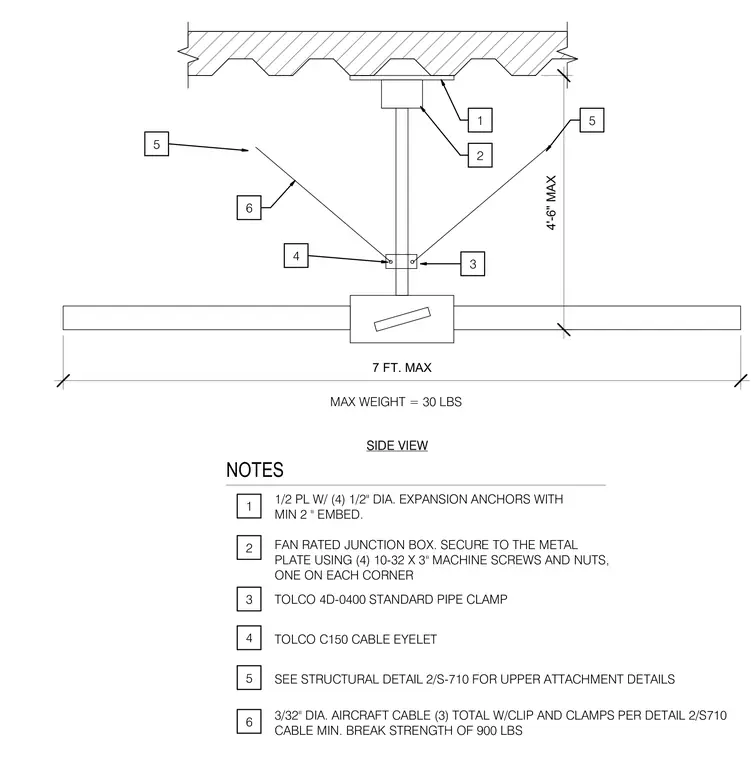

An overhead metal plate is secured to the ceiling structure using four one-half-inch diameter expansion anchors with a minimum two-inch embedment. A fan-rated junction box attaches to the metal plate using four 10-32 by three-inch machine screws and nuts on each corner. A standard pipe clamp and cable eyelet secure three 3/32-inch diameter aircraft cables, each featuring a minimum breaking strength of 900 pounds, anchored per structural details to stabilize the drop. The suspension accommodates a maximum weight of 30 pounds within a seven-foot maximum span and four-foot-six-inch maximum drop.
NOTES 1/2 PL W/ (4) 1/2" DIA. EXPANSION ANCHORS WITH MIN 2 " EMBED. FAN RATED JUNCTION BOX. SECURE TO THE METAL PLATE USING (4) 10-32 X 3" MACHINE SCREWS AND NUTS, ONE ON EACH CORNER TOLCO 4D-0400 STANDARD PIPE CLAMP TOLCO C150 CABLE EYELET 1 2 3 4 1 2 4'-6" MAX 3 4 MAX WEIGHT = 30 LBS SEE STRUCTURAL DETAIL 1/S-710 FOR UPPER ATTACHMENT DETAILS 5 SIDE VIEW 5 7 FT. MAX 5 3/32" DIA. AIRCRAFT CABLE (3) TOTAL W/CLIP AND CLAMPS PER DETAIL 2/S710 CABLE MIN. BREAK STRENGTH OF 900 LBS 6 6 2/S
