Mechanical · M-6NA6S

Air Handling Unit Plan and Elevation

About this detail

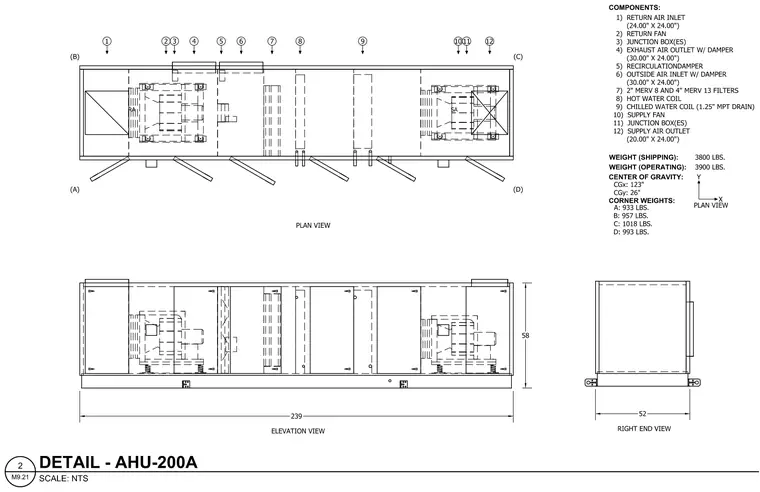

An air handling unit with a length of 239 inches, a height of 58 inches, and a width of 52 inches includes plan view, elevation view, and right end view layouts. The internal components include a return air inlet measuring 24.00 inches by 24.00 inches, a return fan, junction boxes, an exhaust air outlet with damper measuring 30.00 inches by 24.00 inches, a recirculation damper, and an outside air inlet with damper measuring 30.00 inches by 24.00 inches. Additional internal elements comprise 2-inch MERV 8 and 4-inch MERV 13 filters, a hot water coil, a chilled water coil with a 1.25-inch male pipe thread drain, a supply fan, and a supply air outlet measuring 20.00 inches by 24.00 inches. The shipping weight is 3800 pounds, and the operating weight is 3900 pounds, with a center of gravity at CGx of 123 inches and CGy of 26 inches. Corner weights are designated as A at 933 pounds, B at 957 pounds, C at 1018 pounds, and D at 993 pounds.
