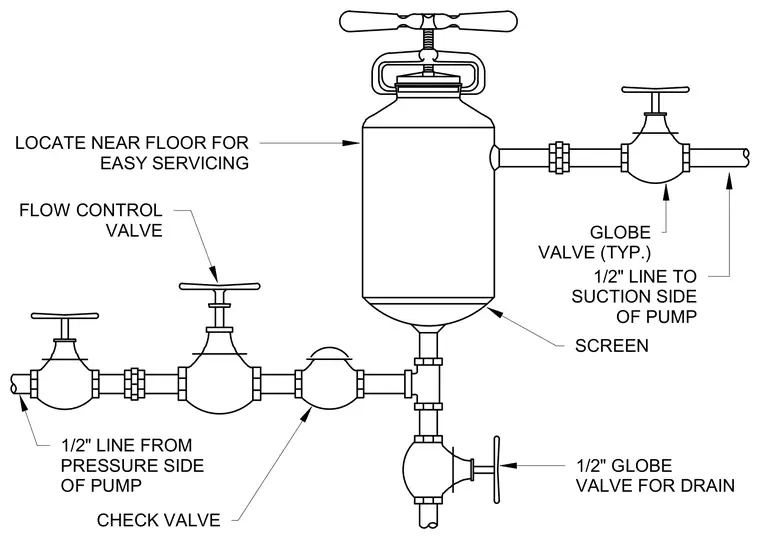

A pot type chemical feeder is connected to the plumbing system using one-half inch lines from the pressure side and to the suction side of the pump. The inlet piping incorporates a flow control valve and a check valve, while the outlet line features a typical globe valve. A screen is positioned at the lower feeder connection above a tee, with a one-half inch globe valve provided for drainage. The assembly is located near the floor for easy servicing.
1/2" LINE TO SUCTION SIDE OF PUMP 1/2" LINE FROM PRESSURE SIDE OF PUMP 1/2" GLOBE VALVE FOR DRAIN SCREEN GLOBE VALVE (TYP.) CHECK VALVE FLOW CONTROL VALVE LOCATE NEAR FLOOR FOR EASY SERVICING
