Mechanical · M-6HFDF

Thermometer Installation

Materials

Elements

About this detail

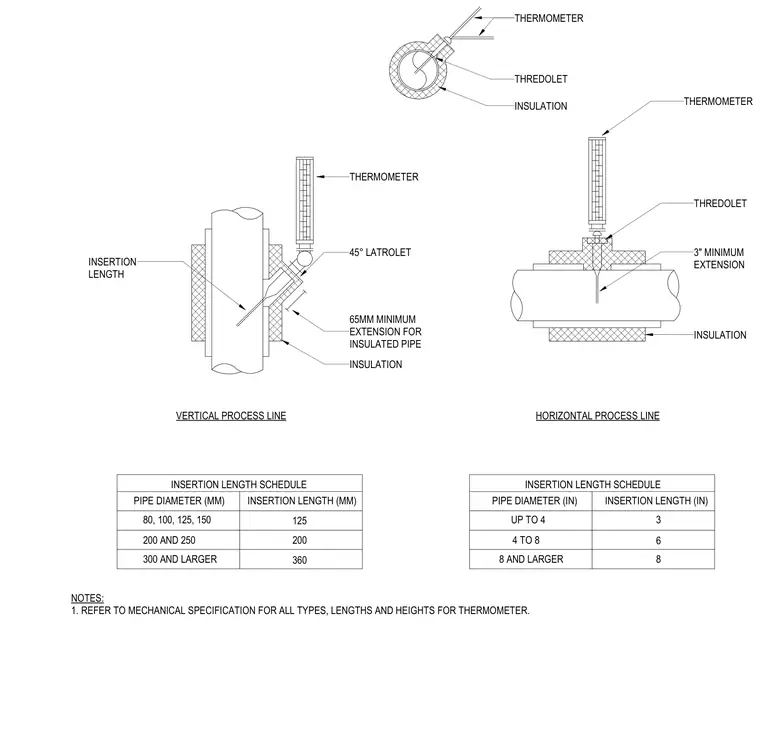

A thermometer is installed on vertical and horizontal process lines passing through surrounding pipe insulation. A thredolet or 45-degree latrolet is welded to the process pipe to receive the thermometer probe, maintaining a minimum extension length for insulated pipes. An insertion length schedule provides specific probe lengths based on pipe diameters in both metric and imperial units. All types, lengths, and heights of the thermometer must comply with the mechanical specification.
