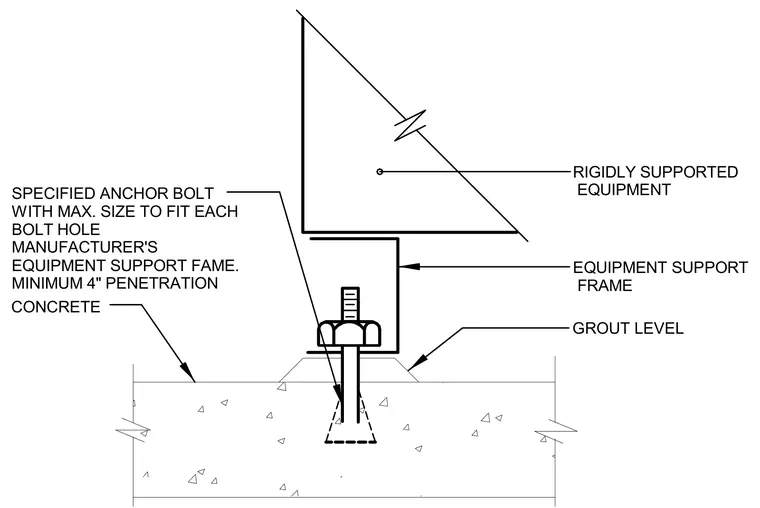

Rigidly supported equipment rests on a manufacturer equipment support frame secured to a concrete substrate. Anchor bolts sized to fit each bolt hole pass through the support frame into the concrete with a minimum four-inch penetration. A leveled layer of grout sits beneath the frame bearing surface above the concrete slab.
SPECIFIED ANCHOR BOLT WITH MAX. SIZE TO FIT EACH BOLT HOLE MANUFACTURER'S EQUIPMENT SUPPORT FAME. MINIMUM 4" PENETRATION RIGIDLY SUPPORTED EQUIPMENT EQUIPMENT SUPPORT FRAME GROUT LEVEL CONCRETE
