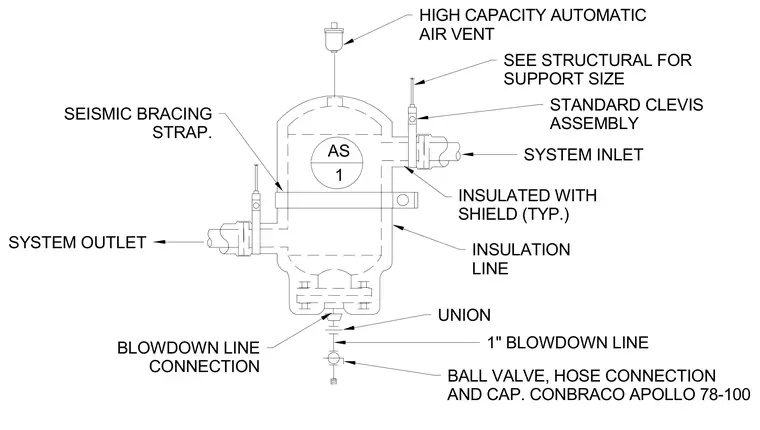

The air separator tank features a system inlet and a system outlet connected to insulated piping with protective shields. A high-capacity automatic air vent mounts to the top connection of the tank. Seismic bracing straps wrap around the body for lateral support, suspended via standard clevis assemblies sized per structural drawings. A one-inch blowdown line connects to the bottom of the tank, fitted with a union and a Conbraco Apollo 78-100 ball valve with a hose connection and cap.
SYSTEM OUTLET AS 1 SEISMIC BRACING STRAP. HIGH CAPACITY AUTOMATIC AIR VENT BLOWDOWN LINE CONNECTION SEE STRUCTURAL FOR SUPPORT SIZE STANDARD CLEVIS ASSEMBLY SYSTEM INLET INSULATED WITH SHIELD (TYP.) INSULATION LINE UNION 1" BLOWDOWN LINE BALL VALVE, HOSE CONNECTION AND CAP. CONBRACO APOLLO 78-100
