Mechanical Pipe Hanger Rod and Channel Support Details

Materials

Steel

Elements

Beams Connections / Plates

Connections

Welded Connection Bolted Connection

About this detail

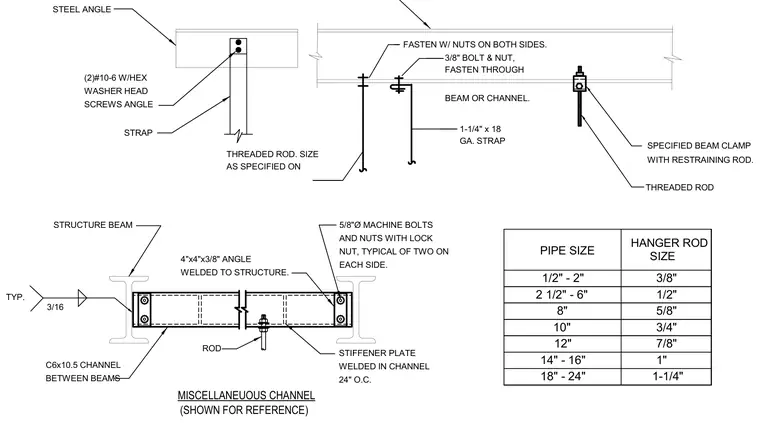

Threaded hanger rods ranging from three-eighths inch to one-and-one-quarter inch diameter suspend mechanical piping and equipment from overhead structural steel beams and channels, sized according to the pipe diameter table provided. Rods are secured using beam clamps with restraining rods, threaded connections with double nuts and lock washers, or bolted straps fastened with two number ten by six hex washer head screws. Miscellaneous channel sections such as C6x10.5 channels span between structural beams, featuring three-sixteenths inch welds and four-by-four-by-three-eighths inch connection angles welded to the structure. Stiffener plates are welded inside the channel members at twenty-four inches on center, and five-eighths inch diameter machine bolts with nuts are provided on each side.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
