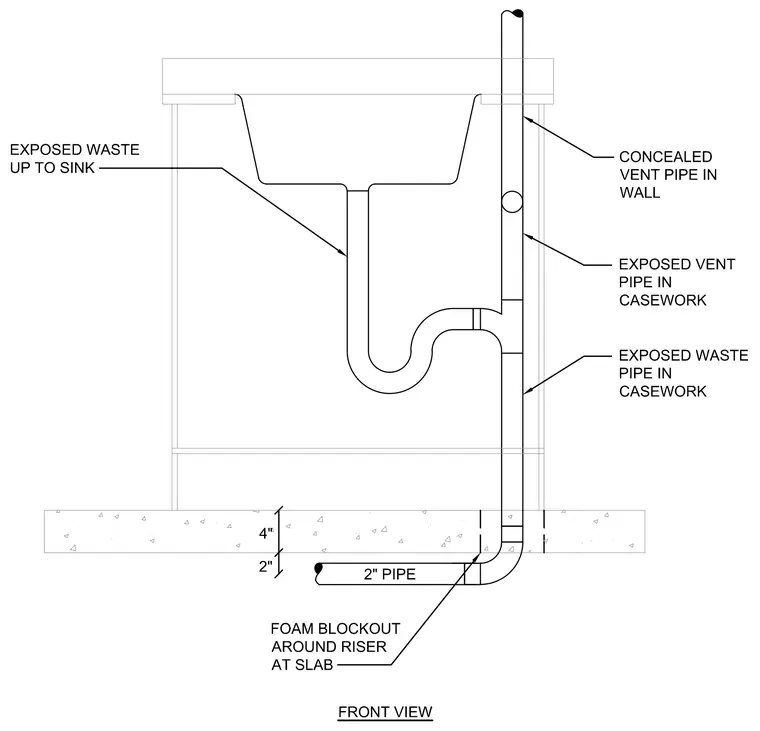

An exposed waste pipe extends up from a two-inch pipe below the concrete slab to the sink, passing through a foam blockout in the slab. An exposed vent pipe runs within the casework and transitions to a concealed vent pipe inside the wall. The two-inch pipe below the slab is offset with dimensions indicating a four-inch spacing from the top of slab and two-inch clearance.
FOAM BLOCKOUT AROUND RISER AT SLAB 2" 4" 2" PIPE EXPOSED WASTE UP TO SINK EXPOSED VENT PIPE IN CASEWORK EXPOSED WASTE PIPE IN CASEWORK CONCEALED VENT PIPE IN WALL FRONT VIEW
