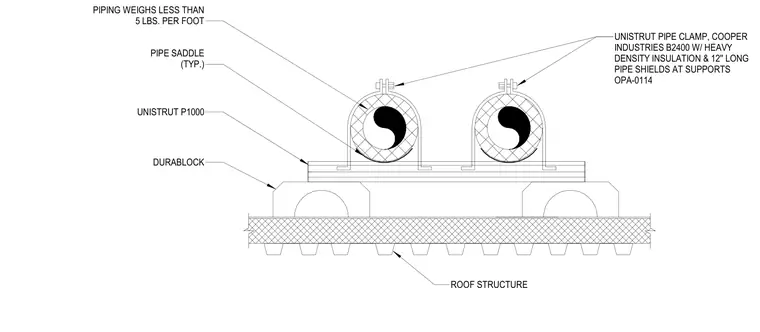

Piping weighing less than five pounds per foot rests upon a Durablock base set directly on the roof structure. A Unistrut P1000 channel spans the Durablock support to receive the piping runs. A typical pipe saddle sits beneath each insulated pipe, which is secured by a Cooper Industries B2400 Unistrut pipe clamp. Twelve-inch long pipe shields and heavy density insulation protect the piping at each support location.
ROOF STRUCTURE UNISTRUT P1000 PIPE SADDLE (TYP.) UNISTRUT PIPE CLAMP, COOPER INDUSTRIES B2400 W/ HEAVY DENSITY INSULATION & 12'' LONG PIPE SHIELDS AT SUPPORTS OPA-0114 DURABLOCK PIPING WEIGHS LESS THAN 5 LBS. PER FOOT
