Mechanical · M-6AFS9

Future Elevator Sump Pump Pit Detail

Materials

About this detail

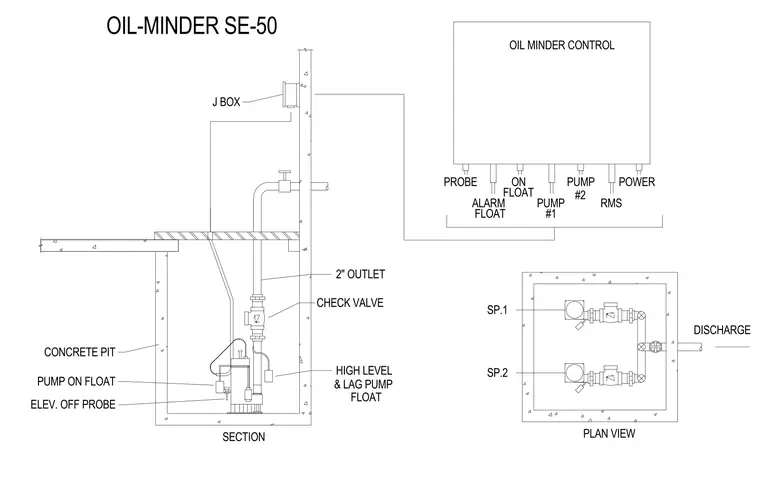

A concrete sump pit is equipped with an Oil-Minder SE-50 system, featuring dual pumps and a junction box connection. The interior includes pump on floats, a high-level and lag pump float, an elevation off probe, and oil-minder probes SP.1 and SP.2. The discharge piping incorporates a two-inch outlet line with check valves leading out of the pit. The Oil Minder control panel connects to the probes, floats, pumps, and RMS system.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
