Cabinet Unit Heater Piping Detail

Elements

Millwork / Casework Connections / Plates

About this detail

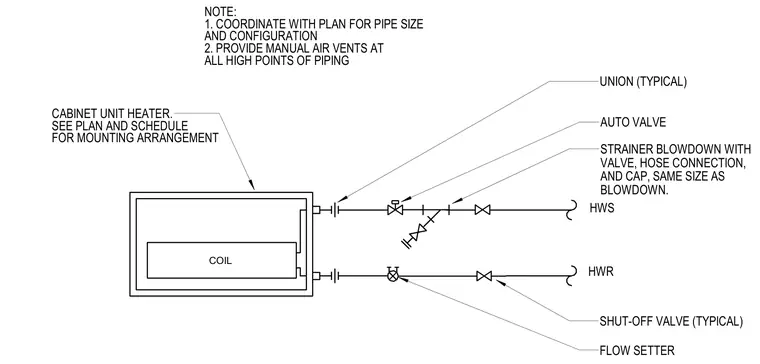

Piping connections for a cabinet unit heater connect to hot water supply and hot water return lines. Typical unions, shut-off valves, auto valves, and flow setters are installed along the piping runs. A strainer blowdown with a valve, hose connection, and cap matching the blowdown size is included on the supply line. Pipe sizes and configurations must be coordinated with the architectural and mechanical plans, and manual air vents must be provided at all high points in the piping system.
