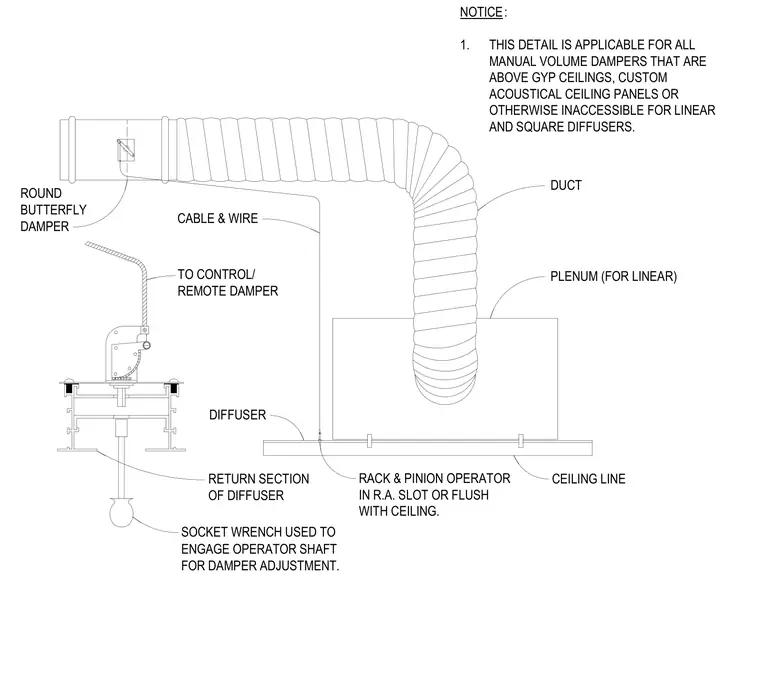

This detail applies to all manual volume dampers located above gypsum ceilings, custom acoustical ceiling panels, or otherwise inaccessible areas for linear and square diffusers. A round butterfly damper connects through a flexible duct to a plenum and diffuser above the ceiling line. A cable and wire run from the damper to a rack and pinion operator positioned in a return air slot or flush with the ceiling. A socket wrench engages the operator shaft to control damper adjustment.
NOTICE: 1. THIS DETAIL IS APPLICABLE FOR ALL MANUAL VOLUME DAMPERS THAT ARE ABOVE GYP CEILINGS, CUSTOM ACOUSTICAL CEILING PANELS OR OTHERWISE INACCESSIBLE FOR LINEAR AND SQUARE DIFFUSERS. FOR DAMPER ADJUSTMENT. ENGAGE OPERATOR SHAFT SOCKET WRENCH USED TO TO CONTROL/ CABLE & WIRE OF DIFFUSER RETURN SECTION DIFFUSER REMOTE DAMPER BUTTERFLY DAMPER ROUND IN R.A. SLOT OR FLUSH RACK & PINION OPERATOR WITH CEILING. CEILING LINE DUCT PLENUM (FOR LINEAR)
