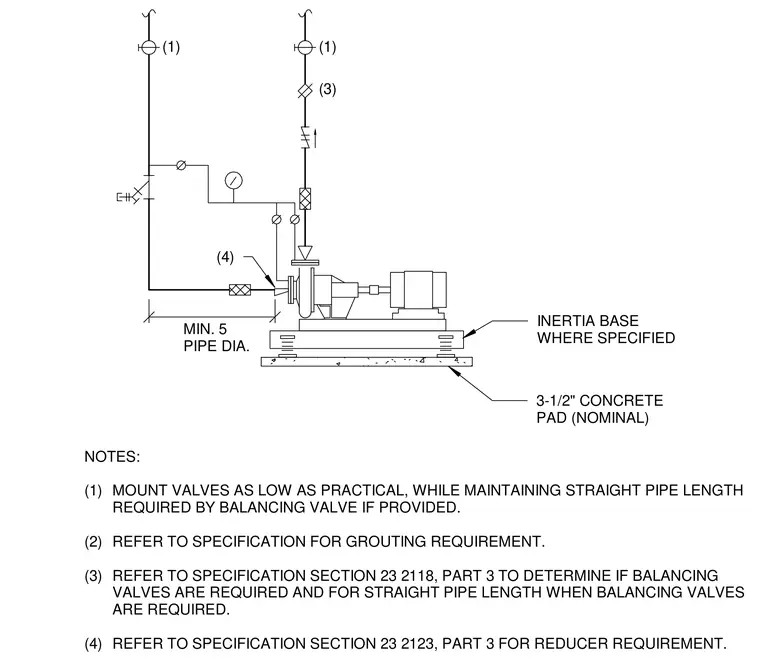

An end-suction pump sits on a nominal three-and-a-half-inch concrete pad and an inertia base where specified. Piping connections incorporate a reducer, valves, and gauges mounted as low as practical while maintaining the required straight pipe length for balancing valves. Flexible connectors and flow control devices are installed in the suction and discharge lines according to project specifications.
(1) (3) MIN. 5 PIPE DIA. (4) 3-1/2" CONCRETE PAD (NOMINAL) INERTIA BASE WHERE SPECIFIED (1) NOTES: (1) MOUNT VALVES AS LOW AS PRACTICAL, WHILE MAINTAINING STRAIGHT PIPE LENGTH REQUIRED BY BALANCING VALVE IF PROVIDED. (2) REFER TO SPECIFICATION FOR GROUTING REQUIREMENT. (3) REFER TO SPECIFICATION SECTION 23 2118, PART 3 TO DETERMINE IF BALANCING VALVES ARE REQUIRED AND FOR STRAIGHT PIPE LENGTH WHEN BALANCING VALVES ARE REQUIRED. (4) REFER TO SPECIFICATION SECTION 23 2123, PART 3 FOR REDUCER REQUIREMENT.
