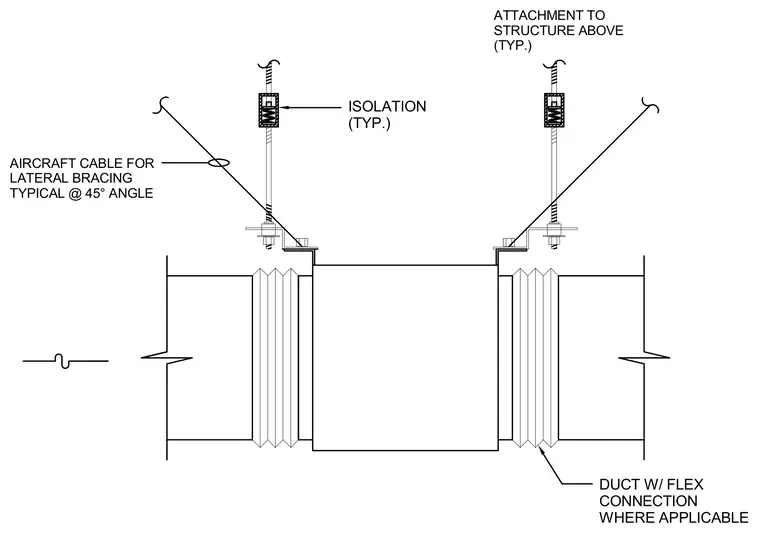

An inline fan is suspended from the structure above using threaded rods fitted with typical vibration isolators. Aircraft cables provide lateral bracing at a forty-five-degree angle attached to the fan housing. Flexible duct connections are installed on both sides of the fan where applicable to minimize vibration transmission.
ISOLATION (TYP.) DUCT W/ FLEX CONNECTION WHERE APPLICABLE AIRCRAFT CABLE FOR LATERAL BRACING TYPICAL @ 45° ANGLE ATTACHMENT TO STRUCTURE ABOVE (TYP.)
