Wide-flange beams connect to wide-flange column flanges using top and bottom continuity plates and bolted shear plates. The continuity plates match the thickness of the larger beam flange and are detailed with additional plates on each side when dimension X exceeds three inches. Shear plates, bolts, and welds are sized per the schedule on detail 1/S601. Field welds at the top and bottom flanges follow American Institute of Steel Construction minimum requirements.

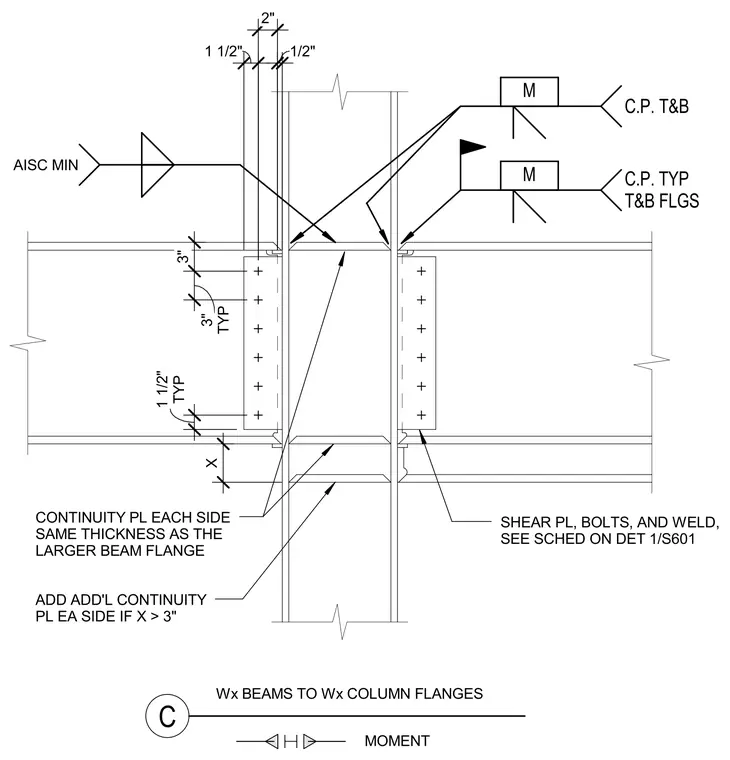

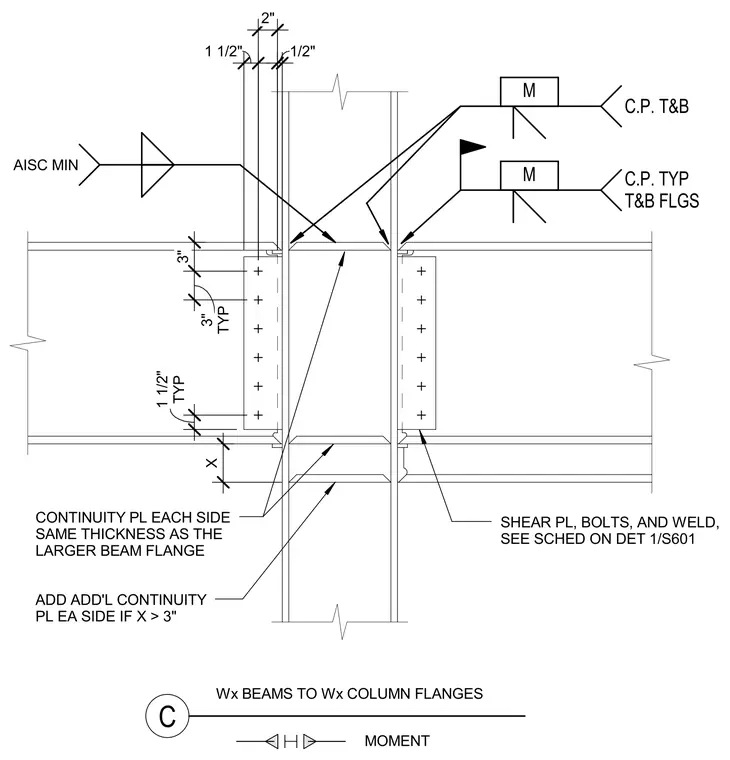

MOMENT AISC MIN C.P. TYP T&B FLGS M C.P. T&B M SHEAR PL, BOLTS, AND WELD, SEE SCHED ON DET 1/S601 CONTINUITY PL EACH SIDE SAME THICKNESS AS THE LARGER BEAM FLANGE ADD ADD'L CONTINUITY PL EA SIDE IF X > 3" 1 1/2" 2" 1/2" TYP 3" 3" TYP 1 1/2" X C Wx BEAMS TO Wx COLUMN FLANGES
