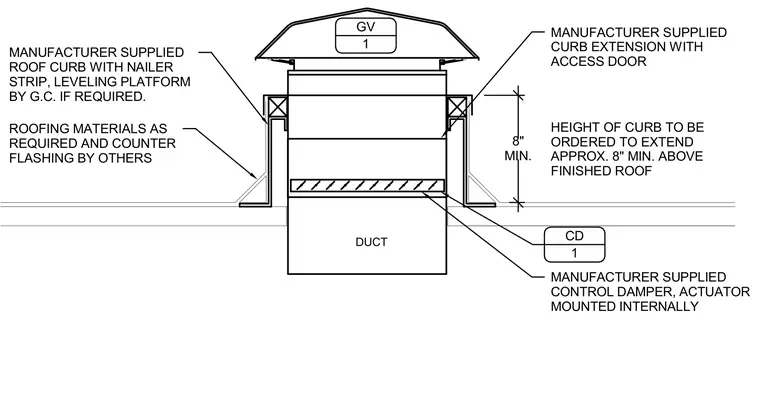

A gravity relief hood is supported by a manufacturer-supplied roof curb featuring an integral nailer strip and an optional leveling platform installed by the general contractor. The curb extension includes an access door and extends a minimum of eight inches above the finished roof level. Roofing materials and counter flashing are applied externally by others around the perimeter of the curb. A manufacturer-supplied control damper with an internally mounted actuator is positioned within the duct opening.
8" MIN. MANUFACTURER SUPPLIED ROOF CURB WITH NAILER STRIP, LEVELING PLATFORM BY G.C. IF REQUIRED. MANUFACTURER SUPPLIED CONTROL DAMPER, ACTUATOR MOUNTED INTERNALLY ROOFING MATERIALS AS REQUIRED AND COUNTER FLASHING BY OTHERS MANUFACTURER SUPPLIED CURB EXTENSION WITH ACCESS DOOR DUCT HEIGHT OF CURB TO BE ORDERED TO EXTEND APPROX. 8" MIN. ABOVE FINISHED ROOF GV 1 CD 1
