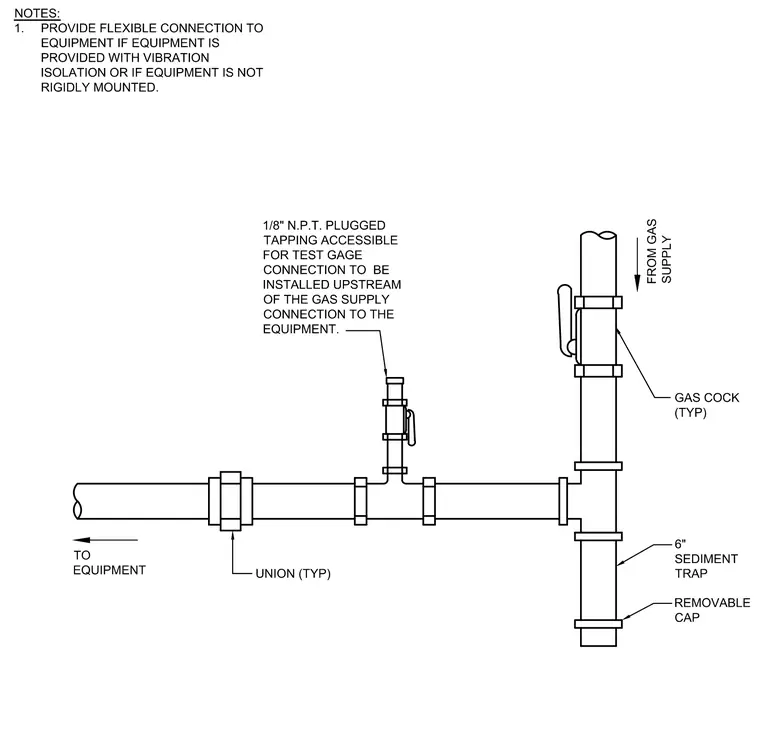

The gas supply line drops down through a typical gas cock valve before terminating in a six-inch sediment trap with a removable cap. A tee fitting branches to provide an accessible one-eighth-inch National Pipe Thread plugged tapping for test gauge connections upstream of the equipment. The horizontal run toward the equipment incorporates a typical union for disassembly and maintenance. A flexible connection must be provided if the equipment utilizes vibration isolation or is not rigidly mounted.
TO EQUIPMENT FROM GAS SUPPLY 1/8" N.P.T. PLUGGED TAPPING ACCESSIBLE FOR TEST GAGE CONNECTION TO BE INSTALLED UPSTREAM OF THE GAS SUPPLY CONNECTION TO THE EQUIPMENT. UNION (TYP) NOTES: 1. PROVIDE FLEXIBLE CONNECTION TO EQUIPMENT IF EQUIPMENT IS PROVIDED WITH VIBRATION ISOLATION OR IF EQUIPMENT IS NOT RIGIDLY MOUNTED. GAS COCK (TYP) 6" SEDIMENT TRAP REMOVABLE CAP
