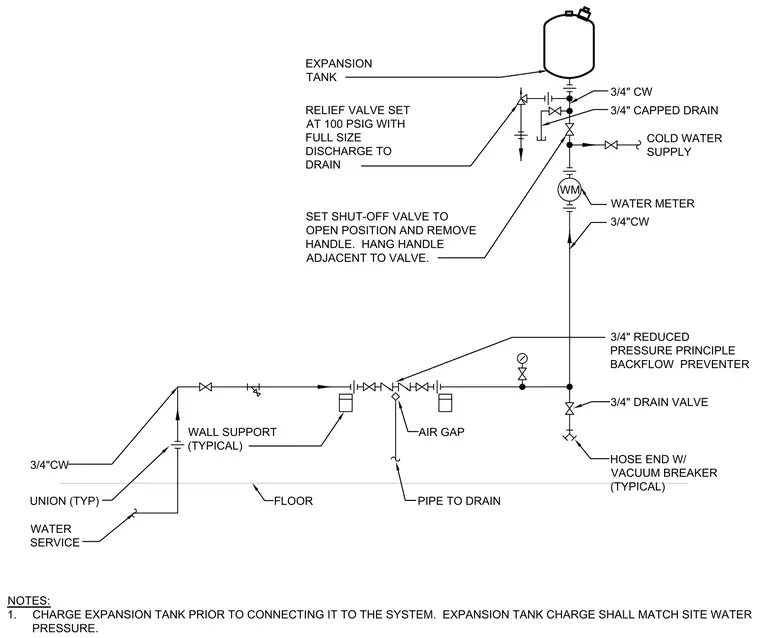

The domestic water service line enters through a wall support and water service union before connecting to a three-quarter-inch cold water supply line. A three-quarter-inch reduced pressure principle backflow preventer is installed with a drain valve and a hose end with a vacuum breaker. A water meter is fitted into the three-quarter-inch cold water line alongside a shut-off valve with its handle removed and hung adjacent. An expansion tank and a relief valve set at one hundred psig discharge to a floor drain via an air gap. The expansion tank must be charged to match site water pressure prior to system connection.
WATER SERVICE UNION (TYP) WALL SUPPORT (TYPICAL) COLD WATER SUPPLY FLOOR PIPE TO DRAIN AIR GAP HOSE END W/ VACUUM BREAKER (TYPICAL) 3/4" DRAIN VALVE 3/4" REDUCED PRESSURE PRINCIPLE BACKFLOW PREVENTER RELIEF VALVE SET AT 100 PSIG WITH FULL SIZE DISCHARGE TO DRAIN EXPANSION TANK 3/4"CW WM 3/4"CW SET SHUT-OFF VALVE TO OPEN POSITION AND REMOVE HANDLE. HANG HANDLE ADJACENT TO VALVE. 3/4" CW 3/4" CAPPED DRAIN WATER METER NOTES: 1. CHARGE EXPANSION TANK PRIOR TO CONNECTING IT TO THE SYSTEM. EXPANSION TANK CHARGE SHALL MATCH SITE WATER PRESSURE.
