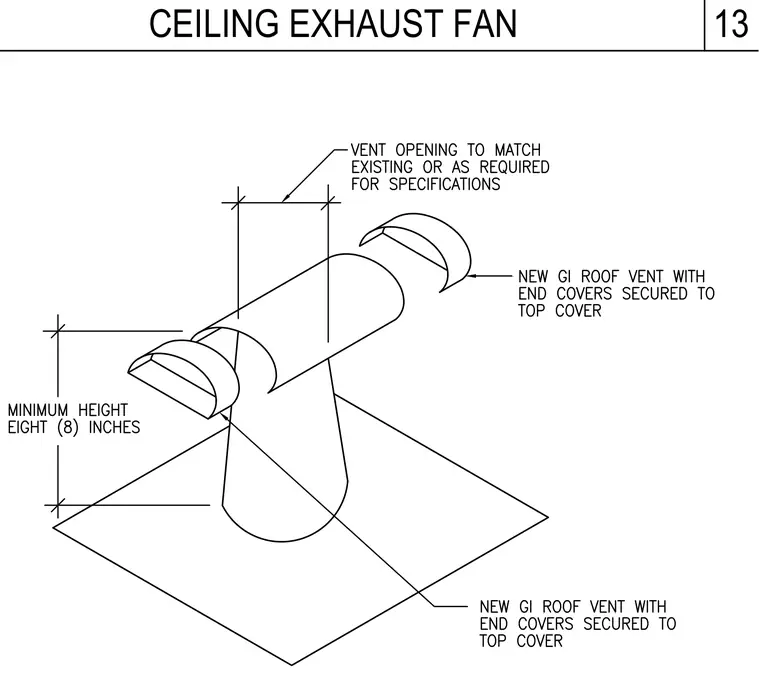

A new galvanized iron roof vent features end covers secured to the top cover over a vertical duct penetration. The vent opening is sized to match existing conditions or specification requirements. A minimum height of eight inches is maintained above the roof surface.
