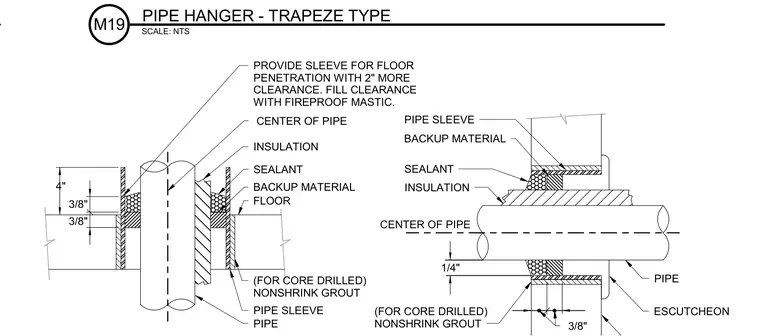

Pipes passing through concrete floor slabs and walls are installed within pipe sleeves with two inches of clearance, filled with fireproof mastic or nonshrink grout for core-drilled applications. The annular space around the insulated or uninsulated pipe is packed with backup material and sealed at the surface. A pipe escutcheon is fitted against the wall or floor surface for a finished appearance. Core-drilled penetrations utilize nonshrink grout to secure the sleeve.
3/8" 1/4" 3/8" PIPE SLEEVE BACKUP MATERIAL SEALANT INSULATION CENTER OF PIPE INSULATION SEALANT BACKUP MATERIAL FLOOR PIPE SLEEVE PROVIDE SLEEVE FOR FLOOR PENETRATION WITH 2" MORE CLEARANCE. FILL CLEARANCE WITH FIREPROOF MASTIC. CENTER OF PIPE PIPE 3/8" PIPE ESCUTCHEON 4" (FOR CORE DRILLED) NONSHRINK GROUT (FOR CORE DRILLED) NONSHRINK GROUT SCALE: NTS M19 PIPE HANGER - TRAPEZE TYPE
