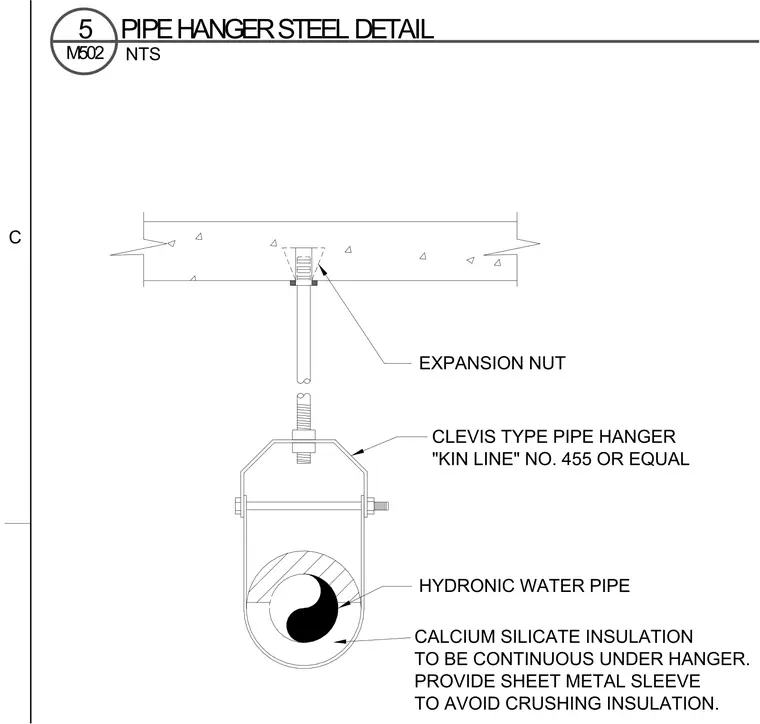

A hydronic water pipe is suspended from an overhead concrete slab using a clevis-type pipe hanger, such as Kin Line number 455 or equal, secured with an expansion nut anchored into the concrete. The pipe is wrapped in calcium silicate insulation to prevent thermal loss. A continuous sheet metal sleeve is provided under the hanger to protect and avoid crushing the insulation.
"KIN LINE" NO. 455 OR EQUAL CLEVIS TYPE PIPE HANGER HYDRONIC WATER PIPE EXPANSION NUT PROVIDE SHEET METAL SLEEVE TO BE CONTINUOUS UNDER HANGER. TO AVOID CRUSHING INSULATION. CALCIUM SILICATE INSULATION C NTS M502 5 PIPE HANGER STEEL DETAIL
