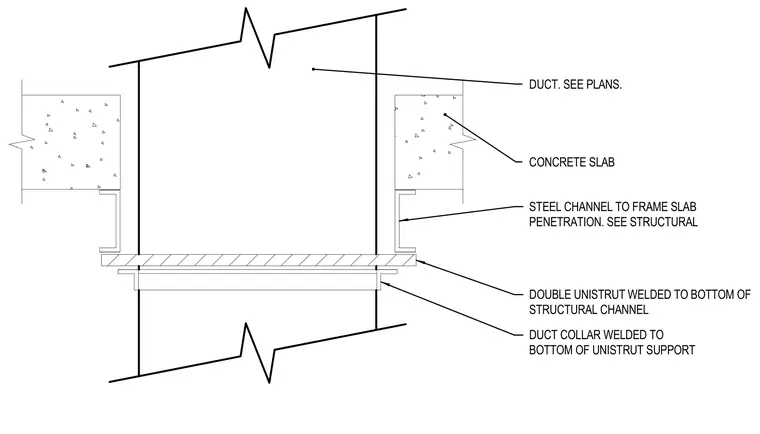

An exposed mechanical duct passes vertically through an opening in a concrete slab. The slab edge is framed by steel channels sized per structural drawings. A double Unistrut member is welded across the bottom of the structural channels to serve as a trapeze support. A duct collar is welded to the underside of the Unistrut support to carry the ductwork.
CONCRETE SLAB STEEL CHANNEL TO FRAME SLAB PENETRATION. SEE STRUCTURAL DOUBLE UNISTRUT WELDED TO BOTTOM OF STRUCTURAL CHANNEL DUCT COLLAR WELDED TO BOTTOM OF UNISTRUT SUPPORT DUCT. SEE PLANS.
