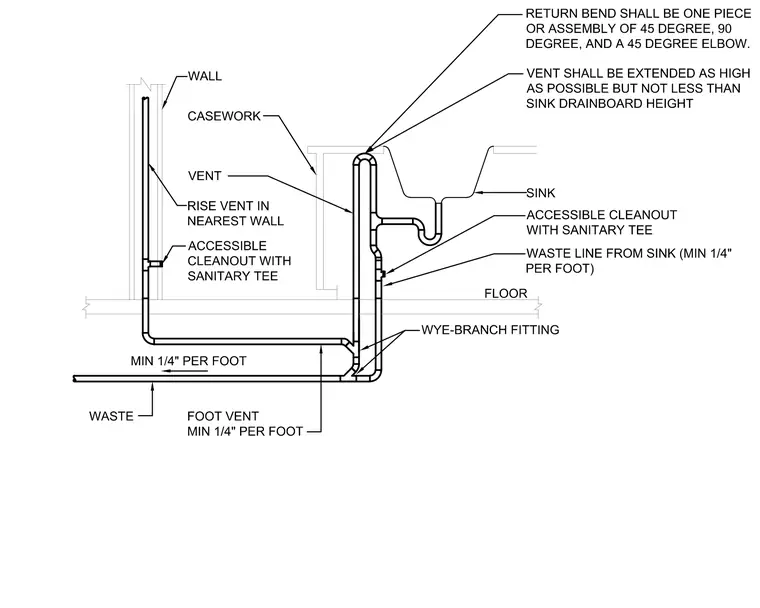

The plumbing assembly connects a sink waste line running at a minimum slope of one-quarter inch per foot to a foot vent and main waste line. The return bend at the top of the vent is constructed from a single piece or an assembly of forty-five degree and ninety-degree elbows, extending at least to the sink drainboard height. A rise vent connects into the nearest wall, featuring an accessible cleanout with a sanitary tee above the floor. Wye-branch fittings manage the transition between waste and foot vent lines below the floor slab.
SINK WASTE LINE FROM SINK (MIN 1/4" PER FOOT) CASEWORK VENT RISE VENT IN NEAREST WALL ACCESSIBLE CLEANOUT WITH SANITARY TEE FLOOR WALL VENT SHALL BE EXTENDED AS HIGH AS POSSIBLE BUT NOT LESS THAN SINK DRAINBOARD HEIGHT FOOT VENT MIN 1/4" PER FOOT RETURN BEND SHALL BE ONE PIECE OR ASSEMBLY OF 45 DEGREE, 90 DEGREE, AND A 45 DEGREE ELBOW. MIN 1/4" PER FOOT WASTE WYE-BRANCH FITTING ACCESSIBLE CLEANOUT WITH SANITARY TEE
