Mechanical · M-5CGDB

Boiler Piping and Equipment Connection Diagram

Materials

Steel

Elements

Beams Floors / Slabs Drainage Anchors / Embeds Connections / Plates

Connections

Bolted Connection Embed Plate

About this detail

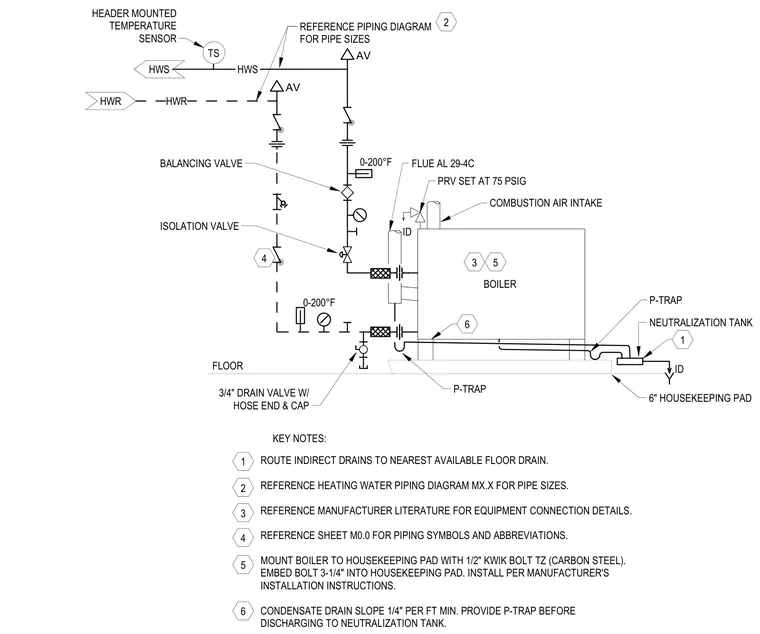

This diagram details the piping and mounting configuration for a boiler installation. The boiler sits upon a six inch concrete housekeeping pad, anchored securely with one-half inch carbon steel Kwik Bolt TZ expansion anchors embedded three and one-quarter inches deep. Heating water supply and return lines feature isolation valves, balancing valves, thermometers, air vents, and a pressure relief valve set at seventy-five psig. A combustion air intake and AL 29-4C flue connect to the boiler. Condensate and indirect drains are piped with a P-trap, sloped at a minimum of one-quarter inch per foot, and discharged into a neutralization tank.
