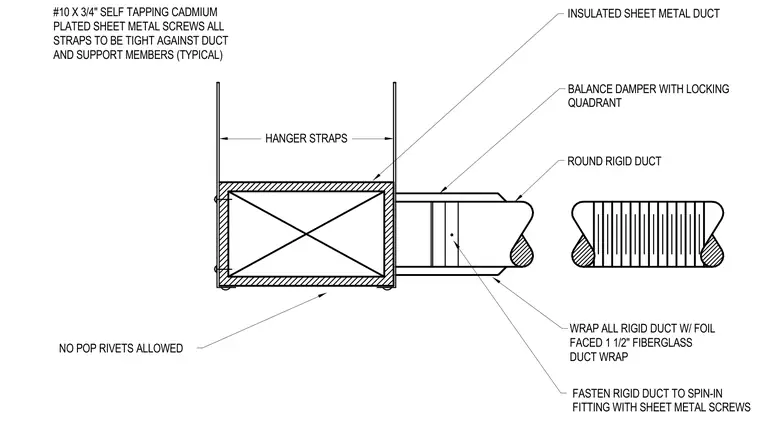

An insulated sheet metal duct receives a round rigid duct connected through a spin-in fitting containing a balance damper with a locking quadrant. The round rigid duct is fastened to the spin-in fitting using number 10 by three-quarter-inch self-tapping cadmium-plated sheet metal screws, while pop rivets are explicitly prohibited. The assembly is wrapped entirely with foil-faced one-and-a-half-inch fiberglass duct wrap. Hanger straps support the main duct and must be kept tight against both the duct and structural support members, using number 10 by three-quarter-inch self-tapping cadmium-plated sheet metal screws for fastening.
INSULATED SHEET METAL DUCT BALANCE DAMPER WITH LOCKING QUADRANT ROUND RIGID DUCT WRAP ALL RIGID DUCT W/ FOIL FACED 1 1/2" FIBERGLASS DUCT WRAP FASTEN RIGID DUCT TO SPIN-IN FITTING WITH SHEET METAL SCREWS NO POP RIVETS ALLOWED #10 X 3/4" SELF TAPPING CADMIUM PLATED SHEET METAL SCREWS ALL STRAPS TO BE TIGHT AGAINST DUCT AND SUPPORT MEMBERS (TYPICAL) HANGER STRAPS
