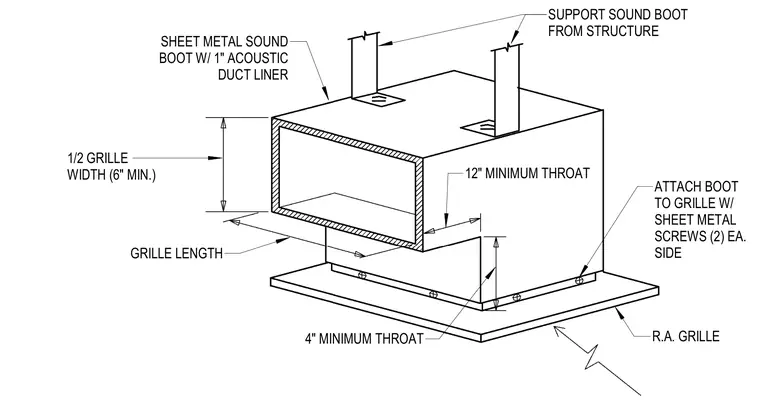

A sheet metal sound boot lined with one-inch acoustic duct liner connects to a return air grille using two sheet metal screws on each side. The assembly requires a minimum twelve-inch throat, a minimum four-inch throat, and a minimum six-inch width equal to half the grille width. Hangers support the sound boot directly from the overhead building structure.
SHEET METAL SOUND BOOT W/ 1" ACOUSTIC DUCT LINER 1/2 GRILLE WIDTH (6" MIN.) GRILLE LENGTH R.A. GRILLE 4" MINIMUM THROAT 12" MINIMUM THROAT SUPPORT SOUND BOOT FROM STRUCTURE ATTACH BOOT TO GRILLE W/ SHEET METAL SCREWS (2) EA. SIDE
