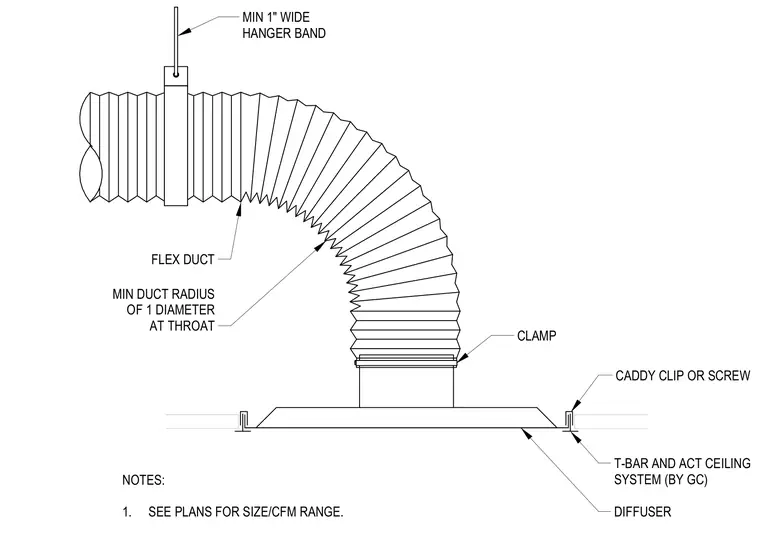

Flexible duct connects directly to the ceiling diffuser using a clamp with a minimum duct radius of one diameter at the throat. The diffuser is supported by a T-bar and acoustical ceiling tile system installed by the general contractor, secured with a Caddy clip or screw. A minimum one-inch wide hanger band supports the flexible duct from above. Sizes and CFM ranges are sized per the plans.
NOTES: 1. SEE PLANS FOR SIZE/CFM RANGE. MIN 1" WIDE HANGER BAND CLAMP CADDY CLIP OR SCREW T-BAR AND ACT CEILING SYSTEM (BY GC) DIFFUSER FLEX DUCT MIN DUCT RADIUS OF 1 DIAMETER AT THROAT
