Mechanical · M-535VC

Single Duct Terminal Unit

Materials

Elements

About this detail

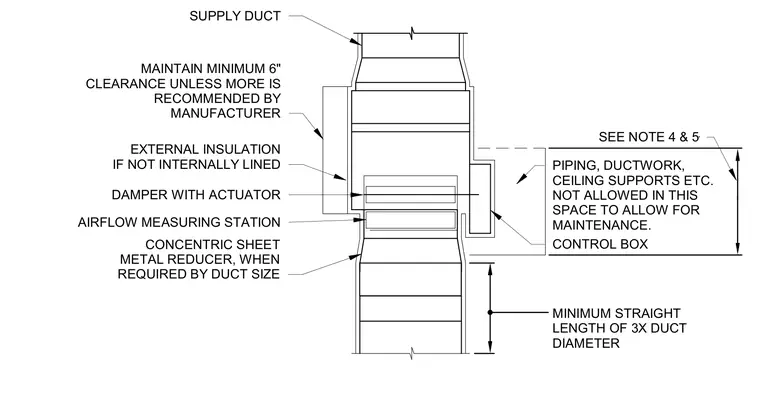

The supply duct connects to a single duct terminal unit equipped with a damper, actuator, and an airflow measuring station. A concentric sheet metal reducer is installed when required by the duct size, followed by a minimum straight length of three times the duct diameter. External insulation is applied if the unit is not internally lined. A minimum of 6 inches of clearance must be maintained unless a greater distance is recommended by the manufacturer. Piping, ductwork, and ceiling supports are restricted from the control box space to allow proper access for maintenance.
