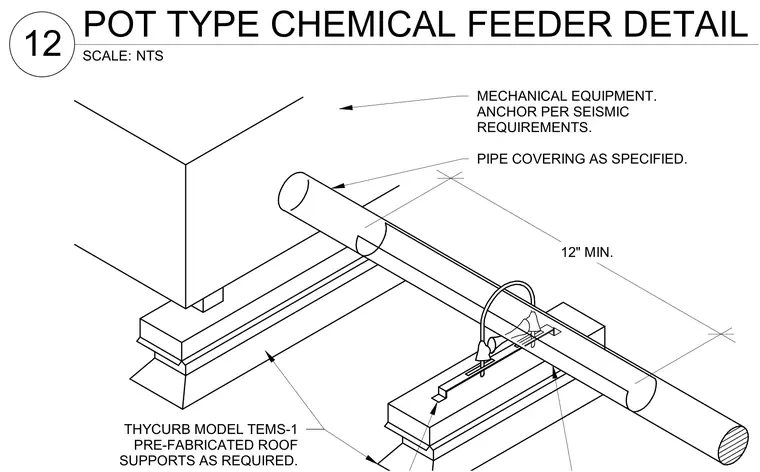

Mechanical equipment sits on prefabricated roof supports such as Thycurb model TEMS-1 as required, anchored per seismic requirements. Associated piping features a twelve-inch minimum pipe covering as specified.
THYCURB MODEL TEMS-1 PRE-FABRICATED ROOF SUPPORTS AS REQUIRED. 12" MIN. PIPE COVERING AS SPECIFIED. MECHANICAL EQUIPMENT. ANCHOR PER SEISMIC REQUIREMENTS. SCALE: NTS 12 POT TYPE CHEMICAL FEEDER DETAIL
