An electrode steam humidifier connects to a rooftop unit via a copper steam supply pipe sized per the manufacturer's recommendations and insulated with a minimum of 2.5 inches of fiberglass insulation with an aluminum jacket. The supply piping maintains a 10-degree minimum upslope and a 2-degree minimum downslope back to the unit. A condensate return line installs per the manufacturer's recommendations alongside a fill cup extension as applicable. A half-inch domestic cold water makeup line provides reverse osmosis water to the system. The unit discharges through a 3/4-inch minimum Type L copper drain line routed to a floor sink with a fixed air gap fitting and an automatic condensate tempering system that limits temperature to 140 degrees Fahrenheit.

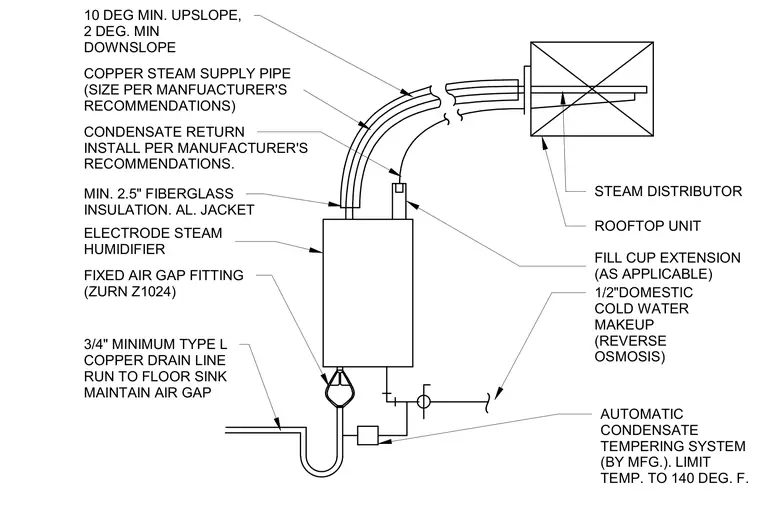

ROOFTOP UNIT FILL CUP EXTENSION (AS APPLICABLE) 1/2"DOMESTIC COLD WATER MAKEUP (REVERSE OSMOSIS) 3/4" MINIMUM TYPE L COPPER DRAIN LINE RUN TO FLOOR SINK MAINTAIN AIR GAP FIXED AIR GAP FITTING (ZURN Z1024) ELECTRODE STEAM HUMIDIFIER MIN. 2.5" FIBERGLASS INSULATION. AL. JACKET COPPER STEAM SUPPLY PIPE (SIZE PER MANFUACTURER'S RECOMMENDATIONS) 10 DEG MIN. UPSLOPE, 2 DEG. MIN DOWNSLOPE CONDENSATE RETURN INSTALL PER MANUFACTURER'S RECOMMENDATIONS. STEAM DISTRIBUTOR AUTOMATIC CONDENSATE TEMPERING SYSTEM (BY MFG.). LIMIT TEMP. TO 140 DEG. F.
