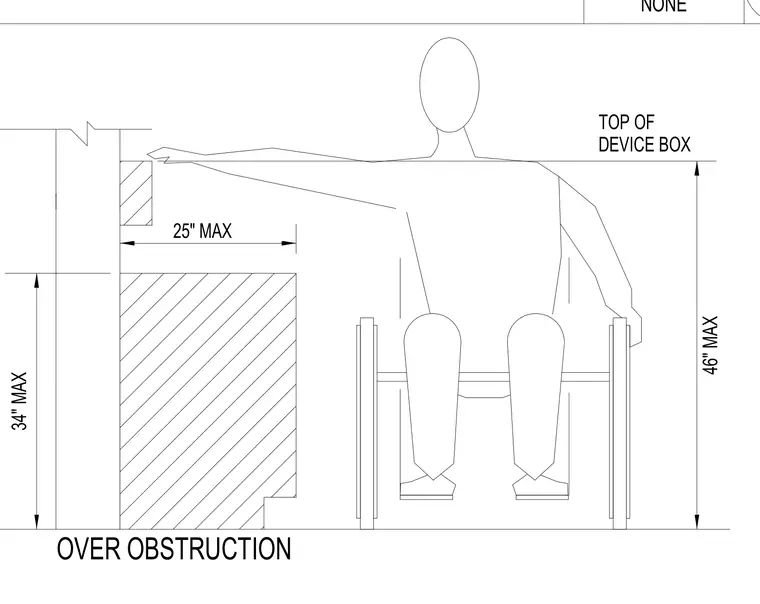

An accessible device box is mounted with a maximum height of forty-six inches above the finished floor when reaching over an obstruction. The maximum depth of the obstruction is twenty-five inches. The maximum height of the obstruction is thirty-four inches.
CEILING AIR INLET/OUTLET CONNECTION DETAIL NONE 34" MAX 25" MAX DEVICE BOX TOP OF 46" MAX OVER OBSTRUCTION
