Mechanical · M-4V2YP

Flexible Duct Connection to Ceiling Diffuser

Elements

Beams Ceilings Trusses Connections / Plates

About this detail

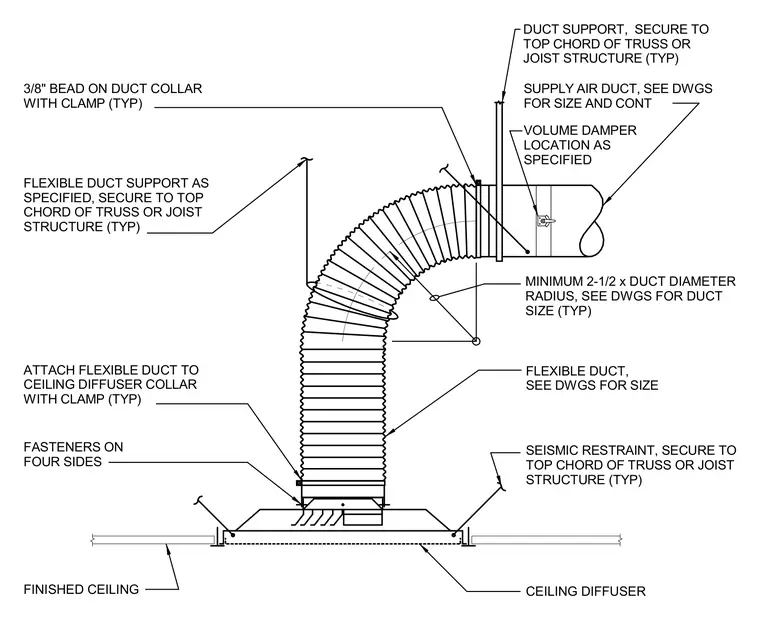

A supply air duct connects to a ceiling diffuser using a flexible duct secured to the diffuser collar with a clamp and fasteners on four sides. A three-eighths-inch bead on the duct collar secures the clamp. The flexible duct maintains a minimum bend radius of two and a half times the duct diameter. A volume damper is located as specified along the supply duct run. Duct supports and seismic restraints are secured to the top chord of the structural truss or joist system.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
