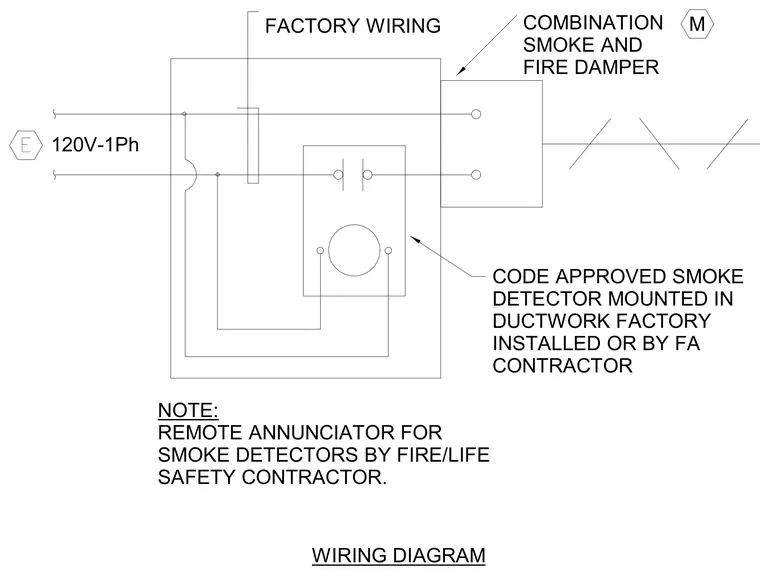

A combination smoke and fire damper receives 120V-1Ph power connected to a code-approved smoke detector mounted in the ductwork, which is either factory installed or installed by the fire alarm contractor. Factory wiring connects the internal components, while a remote annunciator for the smoke detectors is provided by the fire and life safety contractor.
M E COMBINATION SMOKE AND FIRE DAMPER CODE APPROVED SMOKE DETECTOR MOUNTED IN DUCTWORK FACTORY INSTALLED OR BY FA CONTRACTOR FACTORY WIRING 120V-1Ph NOTE: REMOTE ANNUNCIATOR FOR SMOKE DETECTORS BY FIRE/LIFE SAFETY CONTRACTOR. WIRING DIAGRAM
