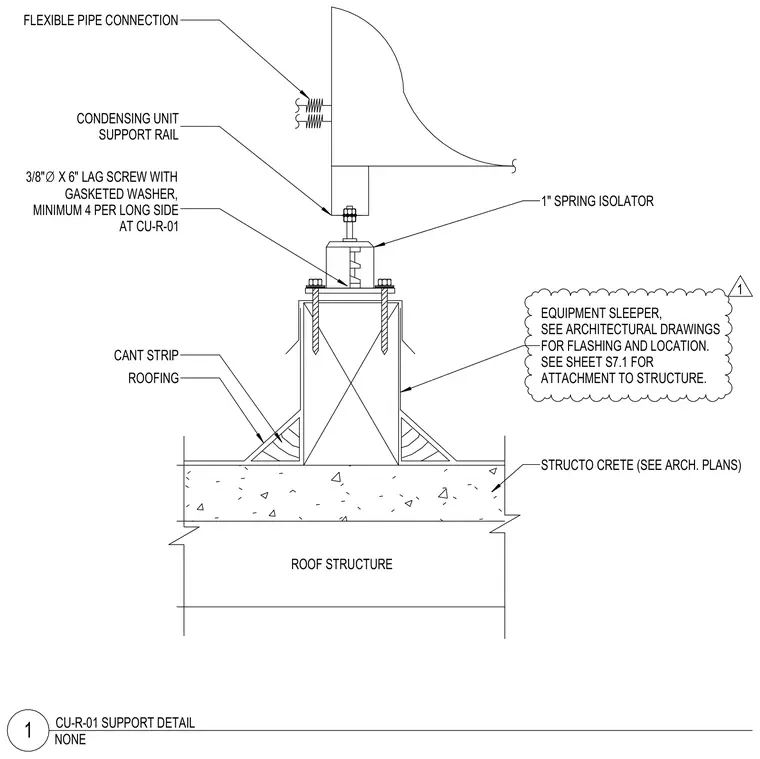

A condensing unit support rail mounts onto an equipment sleeper with a one-inch spring isolator, secured by three-eighth-inch diameter by six-inch lag screws with gasketed washers using a minimum of four per long side. The equipment sleeper bears upon a structo-crete roof assembly with roofing and cant strips. A flexible pipe connects to the condensing unit above.
FLEXIBLE PIPE CONNECTION CONDENSING UNIT SUPPORT RAIL 3/8" ∅ X 6" LAG SCREW WITH GASKETED WASHER, MINIMUM 4 PER LONG SIDE AT CU-R-01 ROOFING ROOF STRUCTURE 1" SPRING ISOLATOR EQUIPMENT SLEEPER, SEE ARCHITECTURAL DRAWINGS FOR FLASHING AND LOCATION. SEE SHEET S7.1 FOR ATTACHMENT TO STRUCTURE. CANT STRIP STRUCTO CRETE (SEE ARCH. PLANS) 1 NONE 1 CU-R-01 SUPPORT DETAIL 5* c 3 tti IT - / / / / / // / / <7 4 \ <7 \ <7 " 4 \ 4 zZL \
