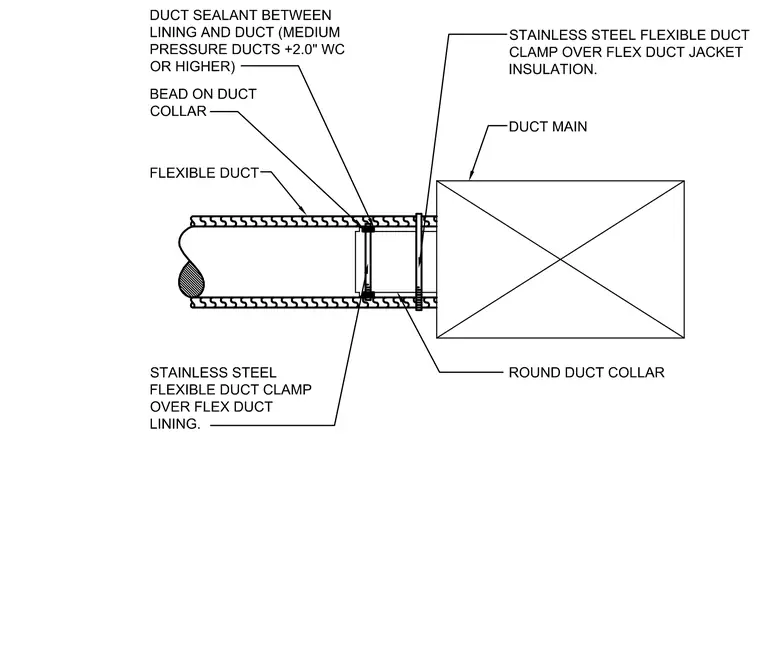

A flexible duct connects to a main duct via a round duct collar featuring a retaining bead. A stainless steel flexible duct clamp secures the inner flex duct lining over the collar, with duct sealant applied between the lining and duct for medium pressure systems operating at plus two inches water column or higher. A second stainless steel flexible duct clamp secures the outer flex duct jacket and insulation over the assembly.
STAINLESS STEEL FLEXIBLE DUCT CLAMP OVER FLEX DUCT JACKET INSULATION. DUCT MAIN FLEXIBLE DUCT STAINLESS STEEL FLEXIBLE DUCT CLAMP OVER FLEX DUCT LINING. BEAD ON DUCT COLLAR DUCT SEALANT BETWEEN LINING AND DUCT (MEDIUM PRESSURE DUCTS +2.0" WC OR HIGHER) ROUND DUCT COLLAR
