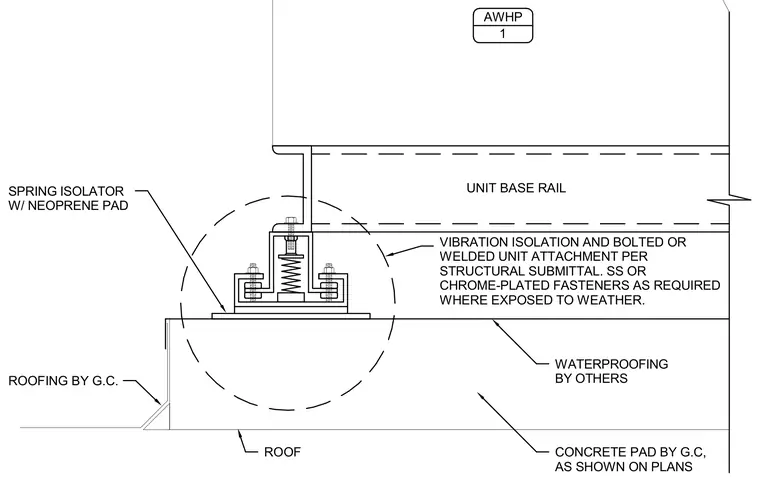

An air-source heat pump unit base rail bears on a spring isolator with a neoprene pad, supported by a concrete equipment pad over the roof. Vibration isolation and bolted or welded unit attachment are coordinated per the structural submittal. Stainless steel or chrome-plated fasteners are used for connections exposed to weather. Roofing and waterproofing are provided by the general contractor, with the concrete pad dimensioned as shown on plans.
WATERPROOFING BY OTHERS CONCRETE PAD BY G.C, AS SHOWN ON PLANS SPRING ISOLATOR W/ NEOPRENE PAD ROOFING BY G.C. ROOF VIBRATION ISOLATION AND BOLTED OR WELDED UNIT ATTACHMENT PER STRUCTURAL SUBMITTAL. SS OR CHROME-PLATED FASTENERS AS REQUIRED WHERE EXPOSED TO WEATHER. AWHP 1 UNIT BASE RAIL
