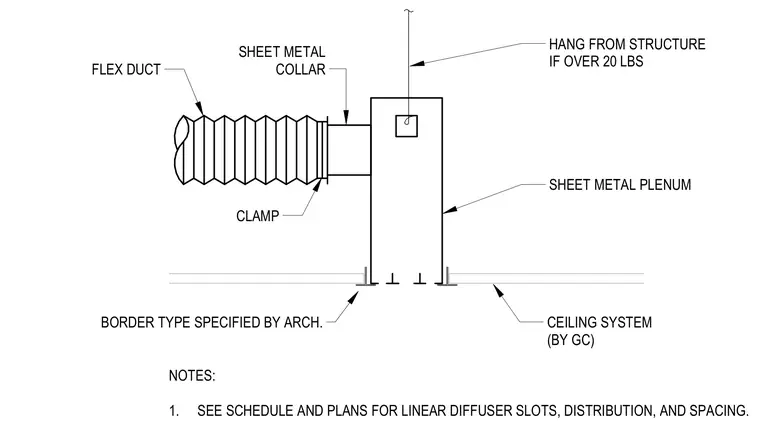

A sheet metal plenum connects to a flexible duct using a sheet metal collar secured with a clamp. The plenum hangs from the building structure if its weight exceeds twenty pounds. The assembly integrates with a ceiling system provided by the general contractor, utilizing a border type specified by the architect.
SHEET METAL PLENUM HANG FROM STRUCTURE IF OVER 20 LBS CLAMP SHEET METAL COLLAR FLEX DUCT NOTES: 1. SEE SCHEDULE AND PLANS FOR LINEAR DIFFUSER SLOTS, DISTRIBUTION, AND SPACING. BORDER TYPE SPECIFIED BY ARCH. CEILING SYSTEM (BY GC)
